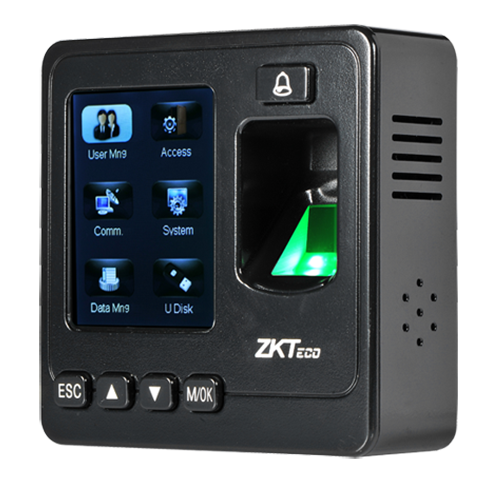

ZKteco USA - SF1007-AQR+ - IP Based Fingerprint Access Control & Time Attendance
The SF1007-AQR+ is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with ZKAccess3.5 software for access control and time attendance management.
Wiegand output makes SF1007-AQR+ flexible to connect with ZKTeco or any 3rd party controllers as a slave reader. Additionally wiegand input allows two units of SF100 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.
Auxiliary input interface allows SF1007-AQR+ to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.
| Model | SF100 |
| LCD | 2.4-inch TFT (320 x 240) Color Screen |
| Fingerprint Sensor | ZK Optical Sensor (500DPI) |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Fingerprint Capacity | 1,500 |
| Card Capacity (Optional) | 5,000 (EM/Mifare) |
| Records Capacity | 80,000 |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Doorbell |
| Wiegand Signal | Wiegand input & output |
| Aux. Input | 1ea for linkage function |
| Power Supply | DC 12V/3A |
| Operating Temperature | 0 ~ 45ºC (32º~113ºF) |
| Operating Humidity | 20 ~ 80% |
| Dimension(W x L x H) | 90 x 90 x 34.5mm |
