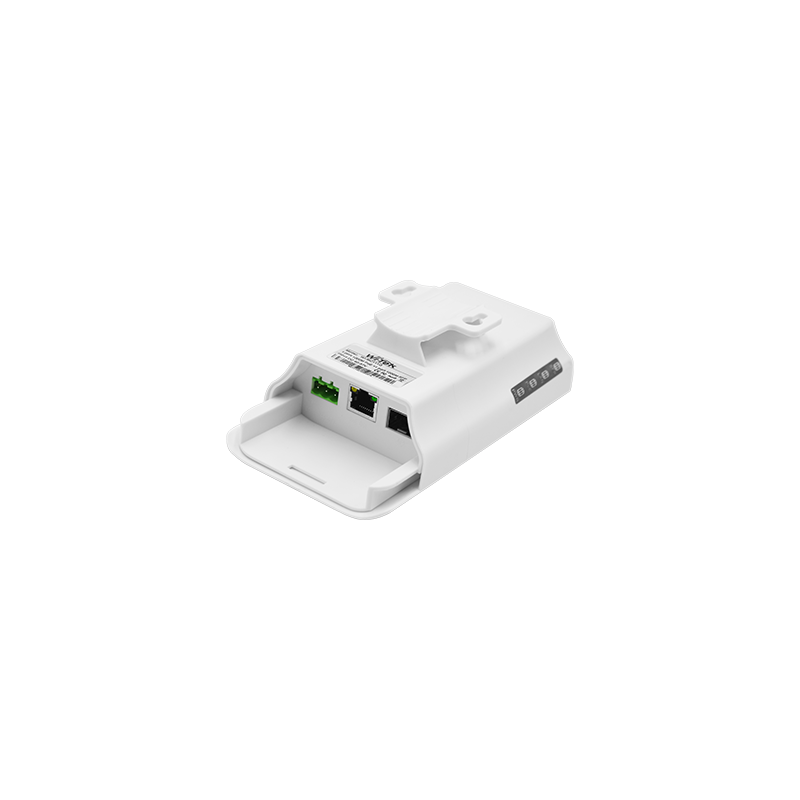

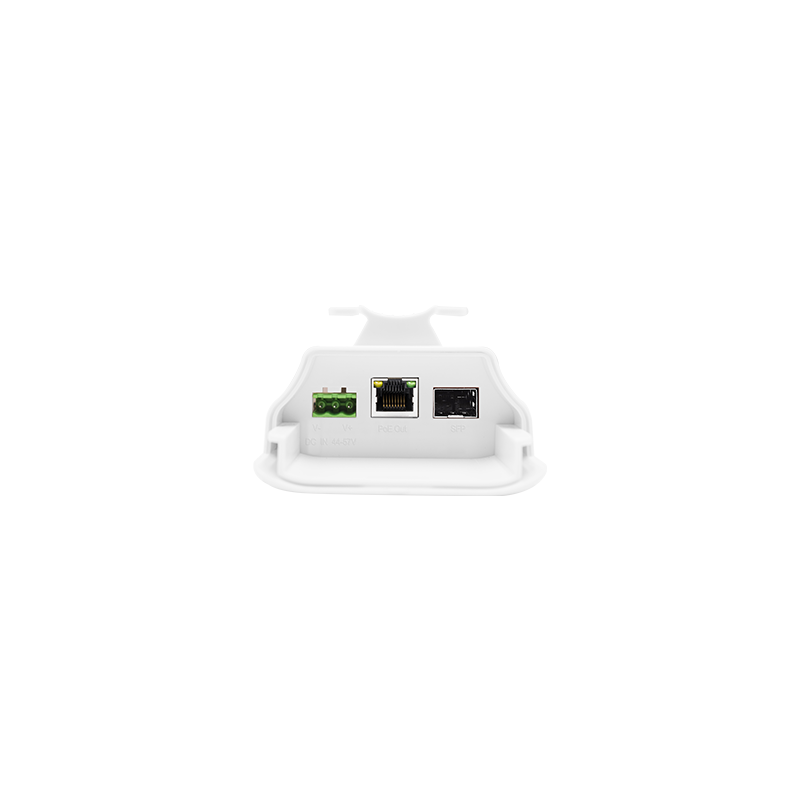

Wi-Tek - WI-MC111GP-O - Gigabit SFP Outdoor Media Converter (Sell in pcs)
Part number:
WI-MC111GP-O
Price:
Power-over-Ethernet (PoE) media converters provide reliable and cost-effective fiber distance extension to PoE-powered devices. PoE media converters can power devices like IP phones, videoconferencing equipment, IP cameras and Wi-Fi devices over UTP cabling.
Features:
- Gigabit SFP Outdoor Media Converter
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Connector: UTP: RJ-45,100/1000Mbps; Fiber: SFP,1000Mbps
- Complies with IEEE 802.3ab and IEEE 802.3z
- Supports up to 9k byte JUMBO frame
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP
- DC Input 37-57V,IP65 Waterproof Design
| Model | WI-MC111GP-O |
| Interface | 1*1000Mbps SFP Port |
| 1*1000Mbps RJ-45 PoE Out Port with 802.3af/at | |
| Wave Length | 850nm/1310nm/1550nm |
| Media | Single-mode FiberMulti-mode Fiber |
| Transmit Range | Depend on the inserting SFP |
| Power Supply | DC IN 44-57V |
| Dimensions | 160*83*44 mm |
| Application | Outdoor (IP65 Waterproof) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | 1 x Media Converter |
| 1 x Warranty Card | |
| Environment | Operating Temperature: 0℃~40℃ (32~104) |
| Storage Temperature: -40℃~70℃ (-40~158) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
