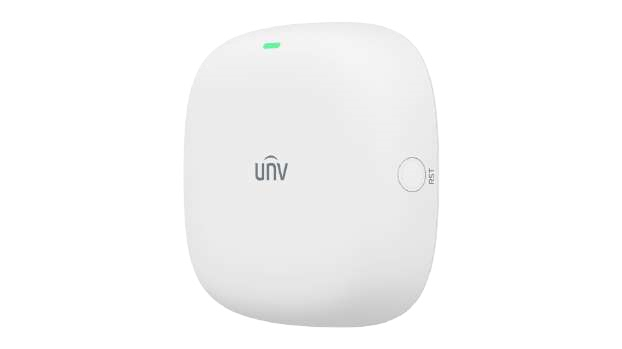

UNV - SLR-MBOX-IN - UNV Solar System Maintence Module (C)
Part number:
SLR-MBOX-IN
Price:
UNV Solar System Maintence Module (C)
Features:
- Allows to overlay the battery percentage OSD on the camera’s live video.
- Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.
| Model | SLR-MBOX-IN |
| Specification | |
| Open circuit voltage | 12V |
| Typical power consumption | 0.84W |
| Maximum power consumption | 2W |
| Input interface type | DC12V circular connector |
| RS485 | Support |
| Reset button | Support |
| Indicator | Blinking green: Normal operation; Steady red: Network error |
| Operating temperature | -20℃ to 45℃ |
| Dimensions | 90*90*38.3mm |
| Weight | 150g |
