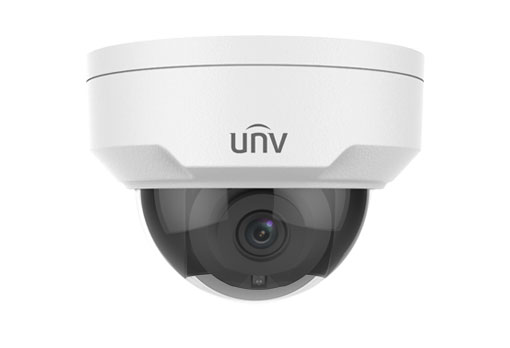

Uniview - IPC322SR3-VSF28W-D - 2mp Wifi Fixed Dome Network Camera

Name: Uniview - IPC322SR3-VSF28W-D - 2mp Wifi Fixed Dome Network Camera
Brand: Uniview
SKU: IPC322SR3-VSF28W-D

Part number:

IPC322SR3-VSF28W-D

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

UNV Easy WiFi 2MP Fixed Lens Dome 28mm

Optics:

Day/night functionality
SmartIR, up to 30 m (98 ft) IR distance
2D/3D DNR (Digital Noise Reduction)

Compression:

Ultra 265,H.265, H.264, MJPEG
Triple streams

Network:

ONVIF Conformance

Structure:

Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide input voltage range of ±25%
IP67
IK10

	IPC322SR3-VSF28W-D
Camera
Sensor	1/2.7", progressive scan , 2.0 megapixel, CMOS
Lens	2.8 mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm	42		16.8	8.4		4.2
Angle of View (H)	112.7°
Angle of View (V)	60.1°
Angle of View (O)	146.5°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~68°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Min. Illumination	Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; Third Stream: 4CIF (704×576): Max. 20 fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	Supported
HLC	Supported
BLC	Supported

Smart
Behavior Detection	Intrusion, Human Body Detection, Motion detection, Tampering alarm
Intrusion	Enter and loiter in a pre-defined virtual region
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,QoS
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Web Browser	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Wi-Fi
Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT
Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @54Mbps 802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity	802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps(Typical)
Transmission Rate	802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	12 V DC(+/-25%)
Power	Power consumption: Max 5W
Dimensions (Ø x H)	Φ109 x 81 mm (Ø4.29” x 3.2”)
Net Weight	0.45 kg (0.99 lb)
Material	Metal + Plastic
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
