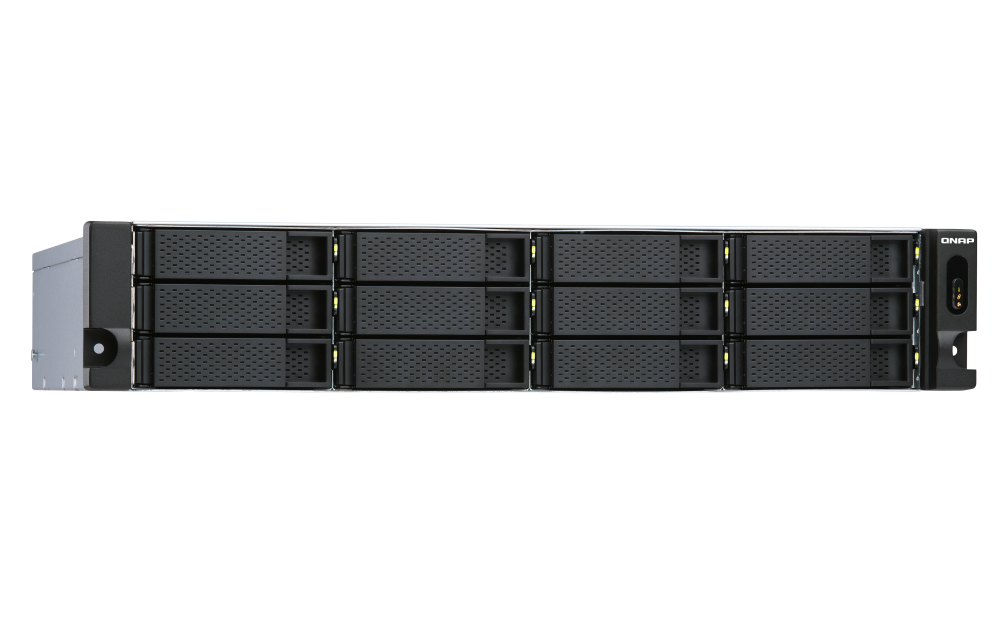

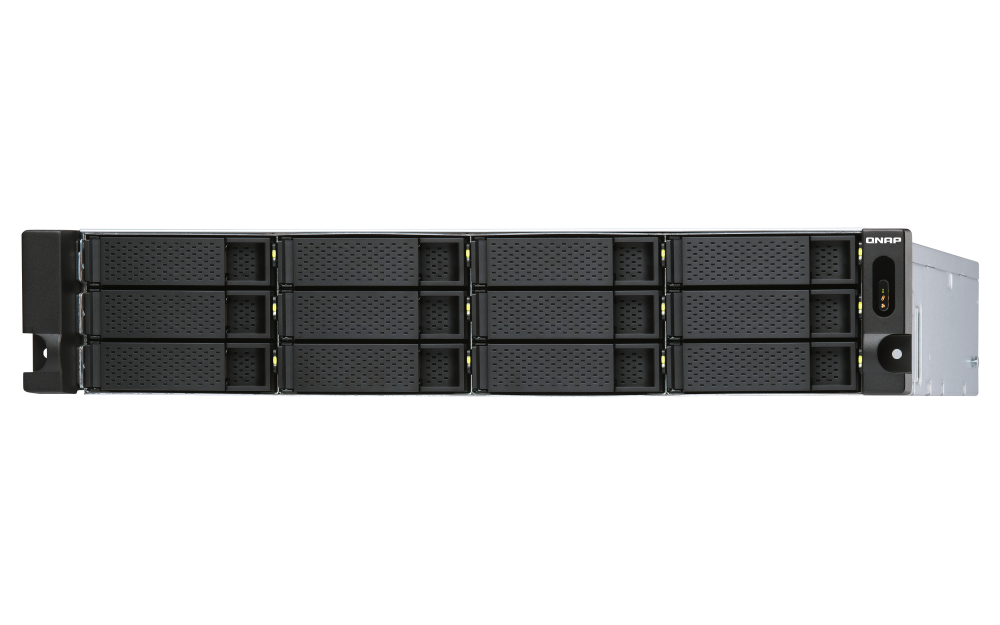

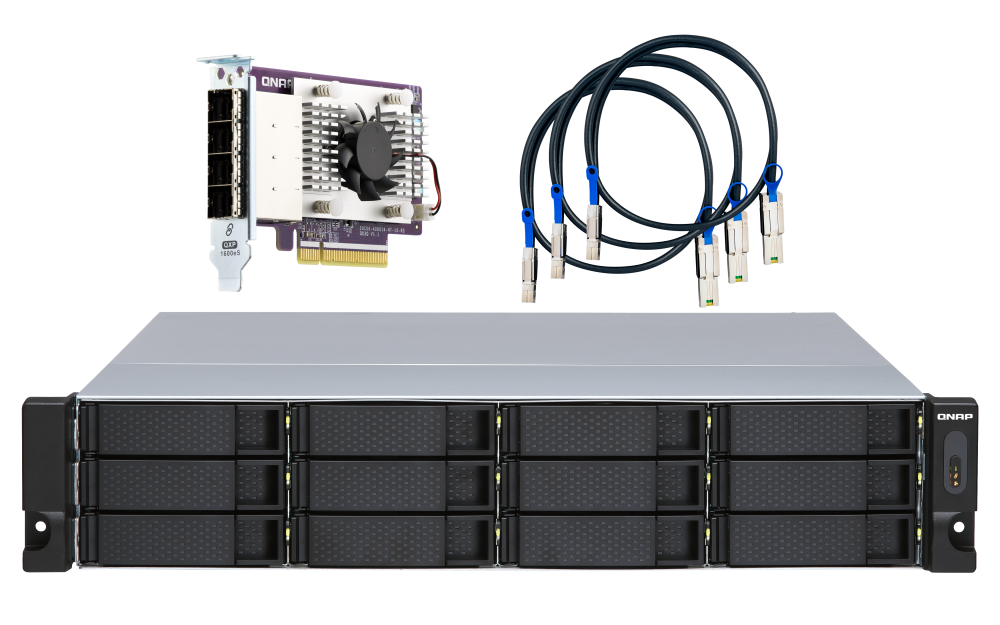

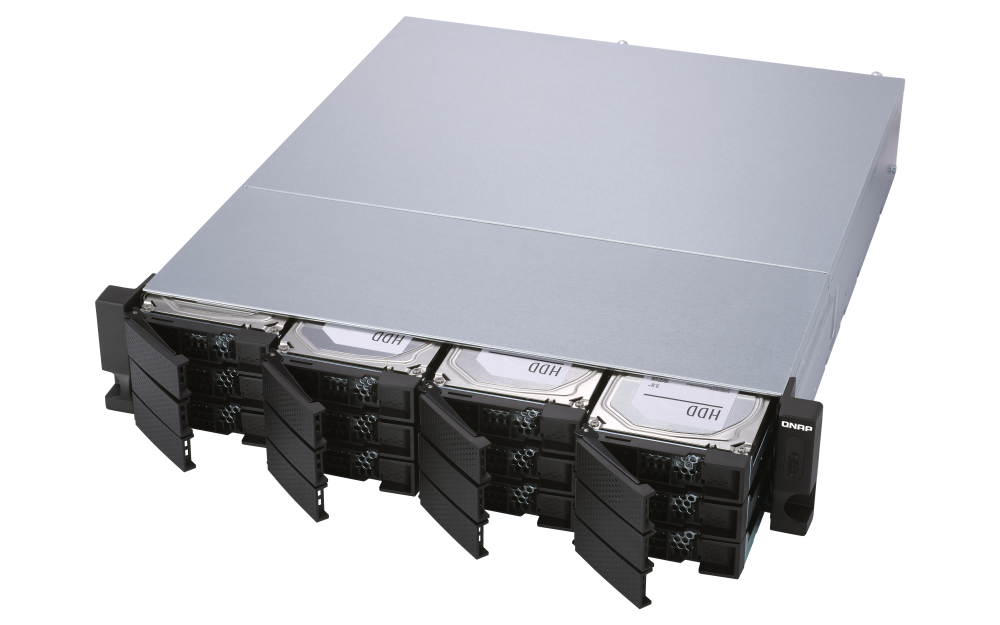

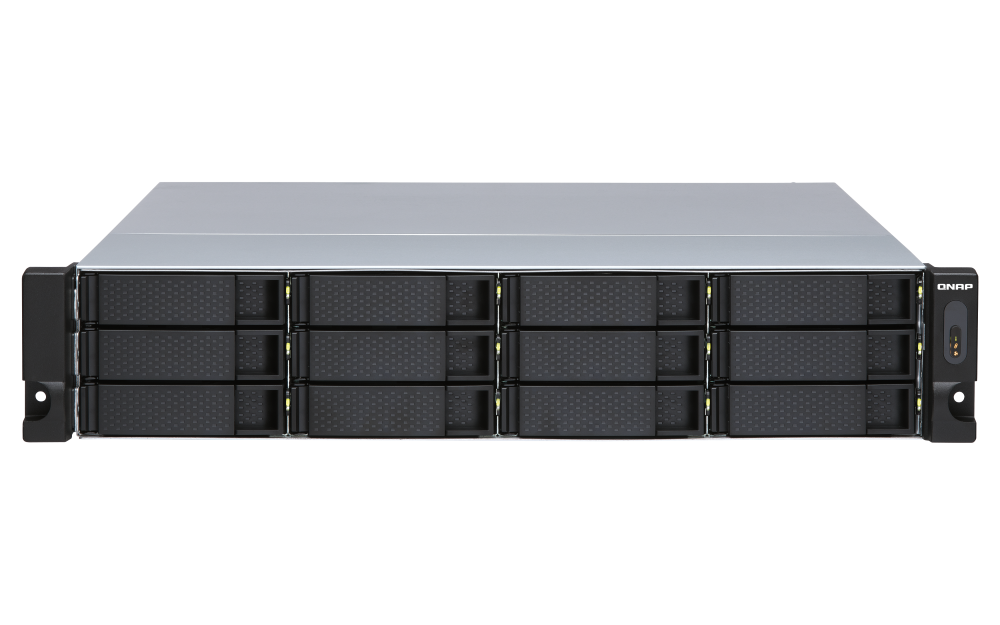

QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables

QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables

Part number:
TL-R1200S-RP-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TL-R1200S-RP Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows and Ubuntu computers and servers. Features twelve 3.5-inch SATA 6Gb/s drive bays, the TL-R1200S-RP comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.



Features:

  • High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows and Ubuntu computers and servers.
  • SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
  • The 250W redundant power supply can ensure maximum system uptime.
Hardware Spec
Drive Bay12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off SwitchYes
Form Factor2U Rackmount
Host Interface3 x SFF-8088
LED IndicatorsHDD 1-12, Status, Link, Fan error
ButtonsPower switch
Dimensions (HxWxD)

88.6 × 482 × 562.5 mm

Excludes ear hook and the protruding part of the Power Supply Unit.

Weight (Net)9.49 kg
Weight (Gross)12.77 kg
Max. number of HDDs/SSDs supported12
Hard Drive Type3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit250W(x2) PSU, 100 - 240V
Power Consumption: Operating Mode, Typical

73.7 W

Tested fully populated with Seagate ST6000NM0024 hard drives.

Fan Mode Switch(Auto, high, medium, low)
Fan2 x 70mm, 12VDC
System WarningBuzzer
Kensington Security SlotYes
Software Spec
Supported O.S.QNAP QTS / QuTS hero, Windows, Linux
QTS / QuTS hero
  1. QTS 4.4.2 / QuTS hero h4.5.0 (or newer)
  2. QTS QTS drive monitoring and storage pool support
  3. QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM
  4. RAID migrated & expanded
  5. Qtier on Enclosure
Utility for other platform
  1. QNAP JBOD Manager
  2. Windows: Win8 or nerwer / Server2012 R2 or newer
  3. Linux:Ubuntu
  4. Device Info
    (Health/Bus type/PSU/Temperature/FAN)
  5. Device Temperature Warning & automatic FAN control
  6. Event Log (support Export)
  7. Enclosure located via LED & beep
  8. LCM + enclosure customizable naming
  9. SATA wiring determination
Name
Description
Size
Downloads
File
Datasheet
0.1mb
