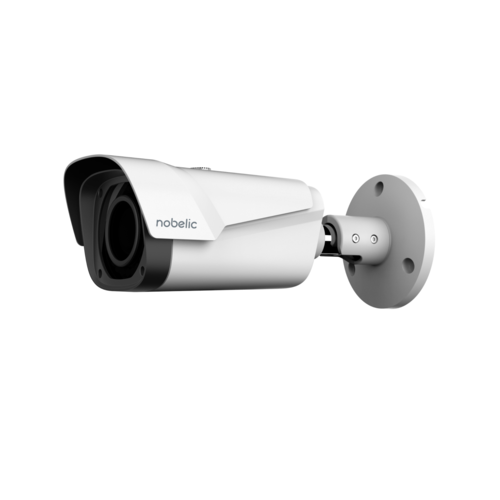

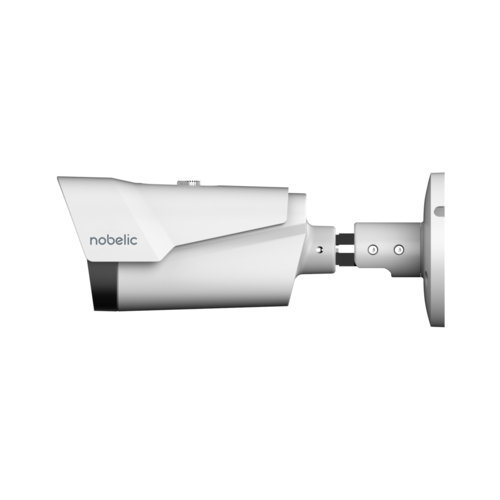

Nobelic - NBLC-3430V-SD - 4MP WDR IR Bullet Network Camera
Part number:
NBLC-3430V-SD
Price:
Nobelic NBLC-3430V-SD 4MP varifocal IP Camera with PoE and microSD card support
Features:
- 1/3” 4 Megapixel progressive CMOS
- H.264+ & H.264 dual-stream encoding
- 20fps@4M(2688x1520) & 25/30fps@3M (2304×1296)
- Max IR LEDs Length 30m
- Horizontal angle of view 100-35°
- DC 12V, PoE
- WDR(120dB), 3DNR, AWB, AGC, BLC
- Works with Ivideon cloud surveillance service
- Edge storage micro SD card, up to 128GB
- Ingress Protection IP67
| Name | NBLC-3430V-SD | |
| Image Sensor | 1/3” 4 Megapixel progressive CMOS | |
| Effective Pixels | 2688(H) x1520(V) | |
| Scanning System | Progressive | |
| Minimum Illumination | 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on) | |
| S/N Ratio | More than 50dB | |
| IR Distance | 30mб Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| BLC Mode | BLC / HLC / WDR(120dB) | |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D DNR | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| Lens | ||
| Lens Type | Vario (manual) | |
| Focal Length | 2.7mm~12mm | |
| Angle of View | H:100°~35°, V:54°~20° | |
| Max. Aperture | F1.4 | |
| Video | ||
| Compression | H.264, H.264+ | |
| Resolution | 4M(2688×1520) / 3M(2304×1296) / 1080P(1920x1080) / 1.3M(1280x960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) | |
| Frame Rate | Main | 4M(1~20fps)/3M(1~25/30fps) |
| Sub | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H264:24K ~ 8192Kbps | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| Audio | ||
| Compression | No | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP | |
| Interoperability | ONVIF, PSIA, CGI | |
| Max. User Access | 10 users (without Ivideon) | |
| Mobile apps | iOS, Android | |
| Interface | ||
| Edge Storage | Micro SD Card 128GB | |
| RS485 | N/A | |
| Alarm in/out | N/A | |
| Electrical | ||
| Power Supply | DC 12V, PoE (802.3af) | |
| Power Consumption | <12,95W(IR on) | |
| Environmental | ||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | N/A | |
| Dimensions | 72mm×80mm×212.8mm (2.8" x 3.1"x 8.4") | |
| Net Weight | 0.685Kg (1.51lb) | |
