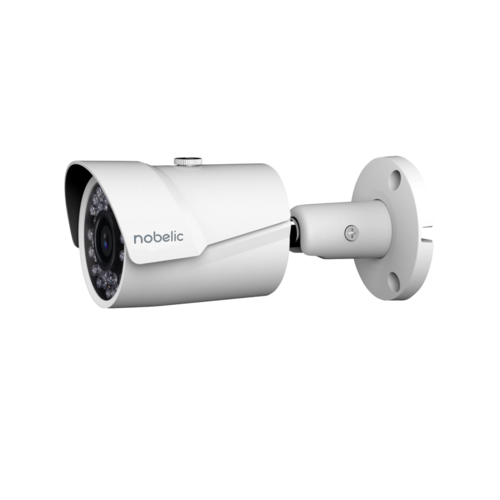

Nobelic - NBLC-3430F - 4MP IR Bullet Network Camera
Part number:
NBLC-3430F
Price:
Nobelic NBLC-3430F 4MP IP Camera with PoE support
Features:
- 1/3” 4 Megapixel progressive CMOS
- H.264 dual-stream encoding
- 20fps@4M(2688x1520), 30fps@3M(2304×1296)
- Max IR LEDs Length 30m
- Horizontal angle of view 83°
- DC 12V, PoE
- DWDR, 3DNR, AWB, AGC, BLC
- Works with Ivideon cloud surveillance service
- Edge storage - micro SD card up to 128GB
- Ingress Protection IP67
| Name | NBLC-3430F | |
| Image Sensor | 1/3” 4 Megapixel progressive CMOS | |
| Effective Pixels | 2688(H) x1520(V) | |
| Scanning System | Progressive | |
| Minimum Illumination | 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) | |
| S/N Ratio | More than 50dB | |
| IR Distance | 30m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| BLC Mode | BLC / HLC / DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D DNR | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| Lens | ||
| Lens Type | Fix | |
| Focal Length | 3.6mm | |
| Angle of View | H: 83° | |
| Max. Aperture | F2.0 | |
| Video | ||
| Compression | H.264 | |
| Resolution | 4M(2560x1440) / 3M(2304×1296) / 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240) | |
Frame Rate | Main | 4M(1 ~ 20fps) / 3M (1 ~ 30fps) / 2M (1 ~ 30fps) |
| Sub | D1/CIF(1 ~ 30fps) | |
| Bit Rate | H264:32K ~ 8192Kbps | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| Audio | ||
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP | |
| Interoperability | ONVIF, CGI | |
| Mobile apps | iOS, Android | |
| Electrical | ||
| Power Supply | DC 12V, PoE (802.3af) | |
| Power Consumption | <5W(IR on) | |
| Environmental | ||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | |
| Ingress Protection | IP67 | |
| Dimensions | 72mm×80mm×212.8mm (2.8" x 3.1"x 8.4") | |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
