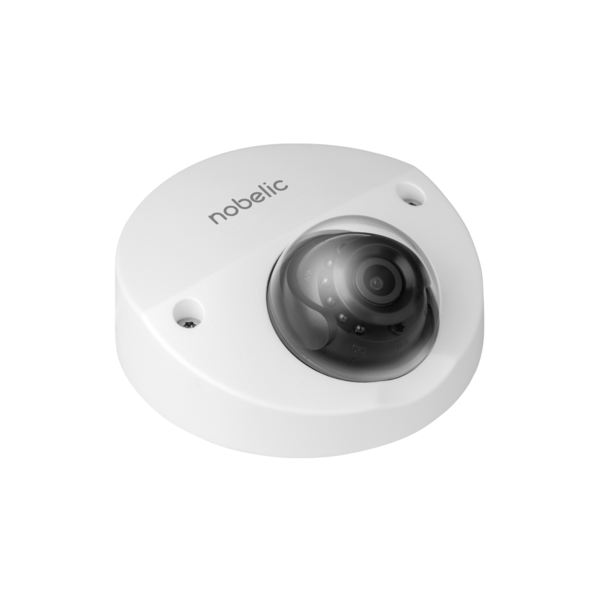

Nobelic NBLC-2420F-MSD 4MP IP Camera with microphone, PoE and microSD card support
Features:
- 1/3” 4 Megapixel progressive scan CMOS
- 264 / MJPEG
- 20fps@4M(2688×1520), 30fps@3M(2304×1296)
- Built-in mic
- IR LEDs Length 20m
- 8mm fixed lens
- Angle of View - 106°
- DWDR, 3DNR, AWB, AGC, BLC, HLC
- Works with Ivideon cloud surveillance service
- Edge storage - micro SD card up to 128 GB
- Ingress Protection IP67
- DC 12V / PoE
| Name | NBLC-2420F-MSD | |
| Image Sensor | 1/3” CMOS 4Mp | |
| Effective Pixels | 2688(H)x1520(V) | |
| Scanning System | Progressive | |
| Minimum Illumination | 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on) | |
| S/N Ratio | More than 50dB | |
| IR Distance | 20m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| BLC Mode | BLC / HLC / DWDR | |
| White Balance | Auto/Outdoor/Customized | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D DNR | |
| Privacy Masking | Off / On (4 Area) | |
| Lens | ||
| Focal Length | 2.8mm | |
| Max. Aperture | F2.0 | |
| Lens Type | Fixed | |
| Angle of View | H: 106° | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 4M (2560x1440), 3M (2304x1296), 1080P (1920x1080), 1,3M (1280x960), 720P (1280×720), D1 (704×480), CIF (352×240) | |
| Frame Rate | Main | 20fps@4M(2688×1520), 30fps@3M(2304×1296) |
| Sub | D1/CIF(1 ~ 30fps) | |
| Bit Rate | H.264: 32K ~ 10Mbps | |
| Corridor format | Yes | |
| Audio | ||
| Compression | AAC, G.711 | |
| Audio Interface | Built-in mic, Audio IN/OUT | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Interoperability | ONVIF, PSIA, CGI | |
| Mobile apps | iOS, Android | |
| Interface | ||
| Edge Storage | Micro SD up to 128GB | |
| Alarm in/out | 1/1 | |
| Electrical | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Power Consumption | <5W | |
| Environmental | ||
| Operating Conditions | -40°C~+60°C, less than 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Dimensions | 4.17”×1.98” | |
| Net Weight | 0.88lb | |
