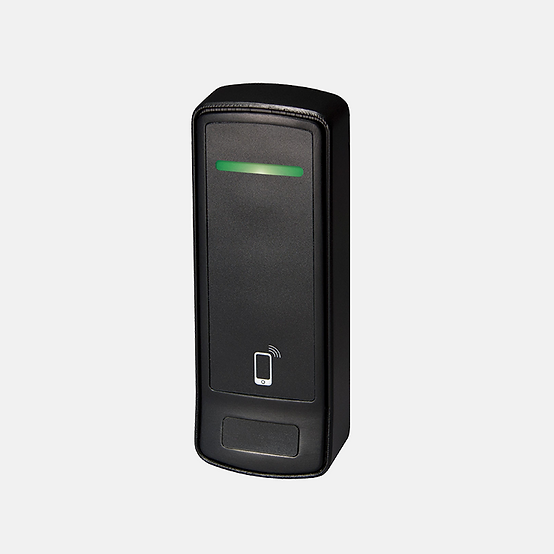

KR500BT is a “mobile-ready” outdoor IP67-rated smart-card reader which additionally supports Bluetooth for smart-phone users preferring not to carry an actual smart card. KR500BT is a phone smart card reader which allows users to utilize their smart-phone as an access control “mobile credential”. Simply download the “Conekt app” to your smart phone, and allow your mobile phone to open the door! KR500BT conveniently ships with a singlegang and mullion mount mounting adapter which allows installers to mount KR500BT on most any surface. It’s ideal for securing doors, parking gates, turnstiles or most any security device.
Features:
- Contactless smartcard and Bluetooth Low Energy (BLE)
- 13.56 MHz (contactless smartcard) and 2.4 GHz (BLE)
- A single reader for metal door and window frames, single-gang wall boxes, and flat surfaces
- Indoor/Outdoor operation
- Waterproof IP67
SPECIFICATIONS
| Technology | Contactless smart-card and Bluetooth Low Energy |
| Supported card types | 13.56 MHz (contactless smart-card) and 2.4 GHz (BLE) |
| Mounting | Either narrow flat surfaces or single gang wall boxes |
| Indoor & Outdoor Installation | Electronics sealed in weather and tamper-resistant epoxy potting |
| Keypad | No |
| Audio indicator | Beep |
| LED indicator | Blue, red, green, amber, and of |
| Wiegand Interface | Wiegand-Out port |
| Power Supply | 8 - 14V DC |
| IP-rating | 67 |
| Operating Temperature | -40° F to 149° F (-40° C to 65° C) |
| Dimensions Mullion | 1.7" x 4.7" x 1.2" |
| Dimensions Switch Plate | 3" x 5.1" x 1.2" |
