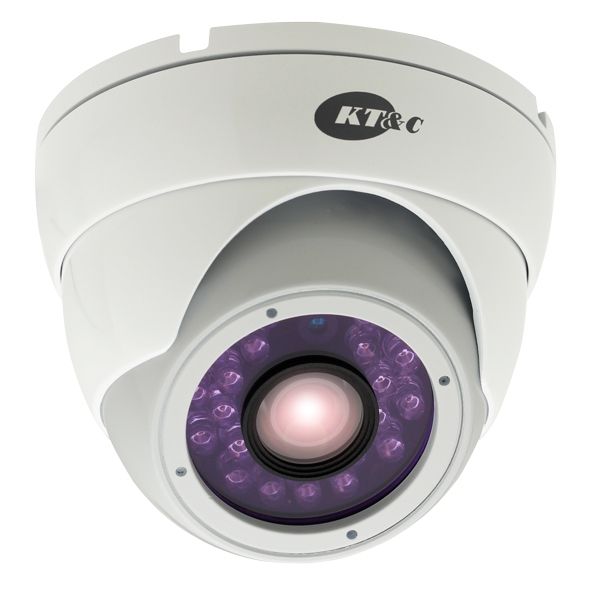

The KEZ-C2TR4IR from KT&C is a 1080p HD-TVI outdoor turret dome camera with 20 IR LED.
Features:
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- Field select 1080p/720p 30/25
- HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service
- Operation over ‘almost any’ wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair) - 1/2.8” progressive scan CMOS sensor
- 3.6mm megapixel lens to capture the desired field of view
- Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions
- Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications)
- True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting
- Simple and easy to use OSD setup menu
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- Wide Dynamic Range for bright or unbalanced scene lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details - IP66 weather resistant, vandal resistant metal housing
- Choice of black or white housing color to blend or contrast with the décor
- Operating temperature range of 14°F~122°F
- 12VDC operation with low current draw
|
Imaging Device |
1/2.8" Progressive Scan CMOS |
|
Video Format |
Main Output: 1080p/720p HD-TVI 30/25 FPS (OSD selectable) Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video |
|
Picture Elements |
1984 (H) x 1105 (V) |
|
Effective Picture Elements |
1920 (H) x 1080 (V) |
|
Horizontal Resolution |
More than 1080 HTVL (1080p mode) |
|
Sensitivity |
0 lux IR on |
|
Day/Night Type |
True Day/Night with ICR motorized filter control |
|
Lens Type |
Megapixel Fixed Focal Length f=3.6mm board type |
|
IR LED |
20 LED, 850nm |
|
IR Range |
66’ / 20m † |
|
Smart IR Exposure Adjust |
Adjustable Off/low/mid/high |
|
Video Output Connector Type |
TVI and CVBS: BNC 75Ω |
|
Sync. Mode |
Internal |
|
OSD Menu |
Multiple functions using UTC Control |
|
OSD Languages |
English, Spanish, Portuguese, German, Russian, Japanese, French |
|
UTC Control |
Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
|
DWDR/BLC/HSBLC |
OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color. |
|
Auto Gain Control |
OFF; 2~42dB |
|
Electronic Shutter |
Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
|
White Balance |
Auto / Push Lock / Manual |
|
Color Correction |
Gamma 0.45~.65, adjustable |
|
Day & Night |
Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control |
|
Digital Slow Sutter [DSS] |
DSS low light boost Off/Auto 2X~16X* |
|
3D-DNR |
Off/Low/Mid/High |
|
Digital Zoom |
1X~8X |
|
Defog |
Off/Low/Mid/High |
|
Mirror |
Off / H-flip, V-flip, rotate |
|
Motion Detection |
Off/On for programmable zone with sensitivity adjust (pixel change detection) |
|
Privacy Mask |
Off/On with full programmability for 8 selectable zones |
|
Lens Shading Compensation) |
Off/Low/Mid/High |
|
DPC (Defective Pixel Correction) |
Off/On |
|
Other OSD Functions |
Camera Title with position, Font Color; Image Sharpness |
|
Power Source |
12VDC |
|
Power Consumption |
12VDC:390mA |
|
Operating Temperature |
14 °F ~ 122 °F (-10 °C ~ 50 °C) |
|
Environmental |
IP66 weather resistant |
|
Mechanical |
Metal ball and base, with base removable for easy mounting |
|
Positioning |
3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360° |
|
Dimensions |
Ø5.14” × 3.67” [Ø93 × 63mm] |
|
Weight |
.73 lbs./332g |
|
Certifications |
CE / FCC / RoHS |
