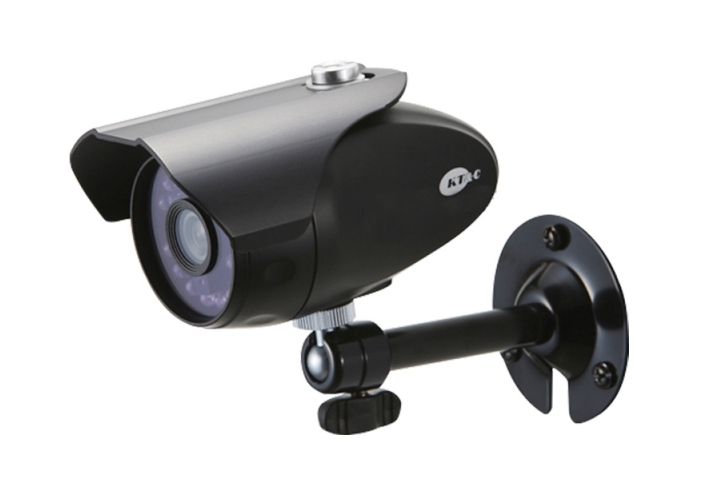

KT&C - KEZ-c2BR4IR - Mini Bullet, 3.6mm
The KEZ-C2BR4IRB from KT&C is a 1/2.7" progressive scan CMOS bullet IR camera.
Features:
- 1/2.7” Progressive Scan CMOS
- EZHD-TVI: 1080p 30 FPS
- True Day/Night
- 20 IR LEDs with 66’ Smart IR Range
- Min. Illumination of 0 Lux (IR LED On)
- IP67 (Weatherproof)
- Fixed Board Lens
- DC 12V Power
|
Image Device |
1/2.7” PROGRESSIVE SCAN CMOS |
|
Effective Pixels |
1920 (H) x 1080 (V) |
|
Unit cell size |
3.0um (H) x 3.0um (V) |
|
Video output mode |
HD-TVI : 1080P 30fps(25fps) |
|
Transmission Distance |
HD-TVI : Color 300m@RG59 , BW 500m@RG59 |
|
Minimum Illumination |
0 Lux (LED On) |
|
Shutter speed |
Auto, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/3000, 1/10000 |
|
BLC/HLC |
BLC/HLC |
|
AGC |
1~5 (Max. 30dB) |
|
2DNR |
AUTO |
|
White Balance |
AUTO / USER / PUSH / Manual |
|
Lens |
Board Lens |
|
Day&Night |
True Day&Night |
|
IR-LED |
850nm, up to 66 Foot IR Distance† |
|
IP Rating |
IP67 |
|
Temperature/ Humidity |
Operation : 14°F~122°F(-10°C~50°C) Storage : -4°F~140°F(-20°C~60°C) |
|
Power Consumption |
DC12V ±10% Max.350mA |
|
External Control |
UTC |
|
Dimension |
Ø 2.29 x 3.93 Inches (Ø 58.3 x 100mm) |
|
Weight |
Approx. 12.69 Oz |
