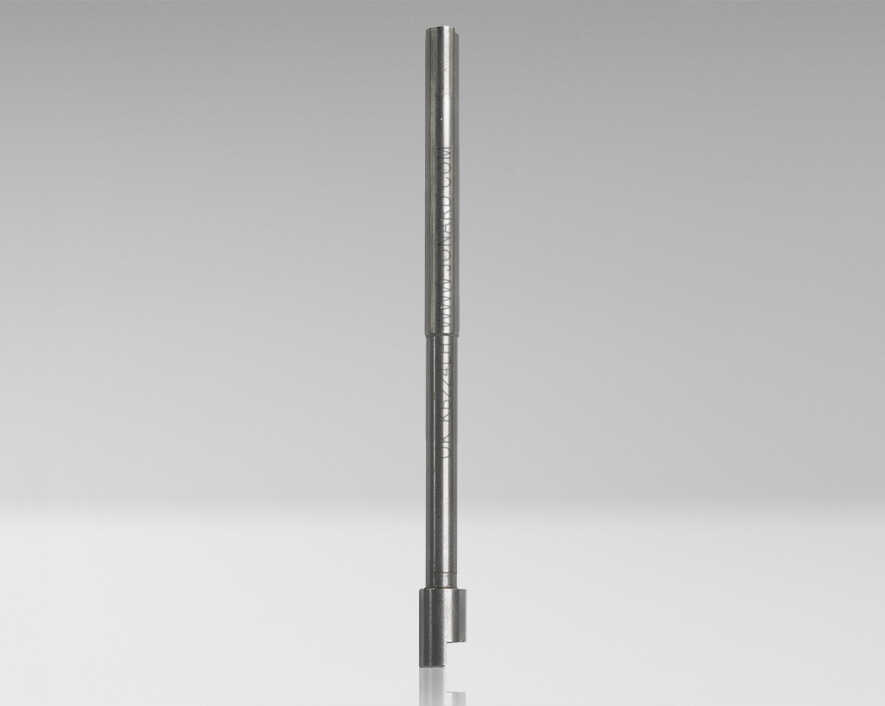

Jonard - KB224LH - Wire Wrapping Bit, 22-24 AWG
Part number:
KB224LH
Price:
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around rectangular binding posts when used in conjunction with a wire wrapping tool.

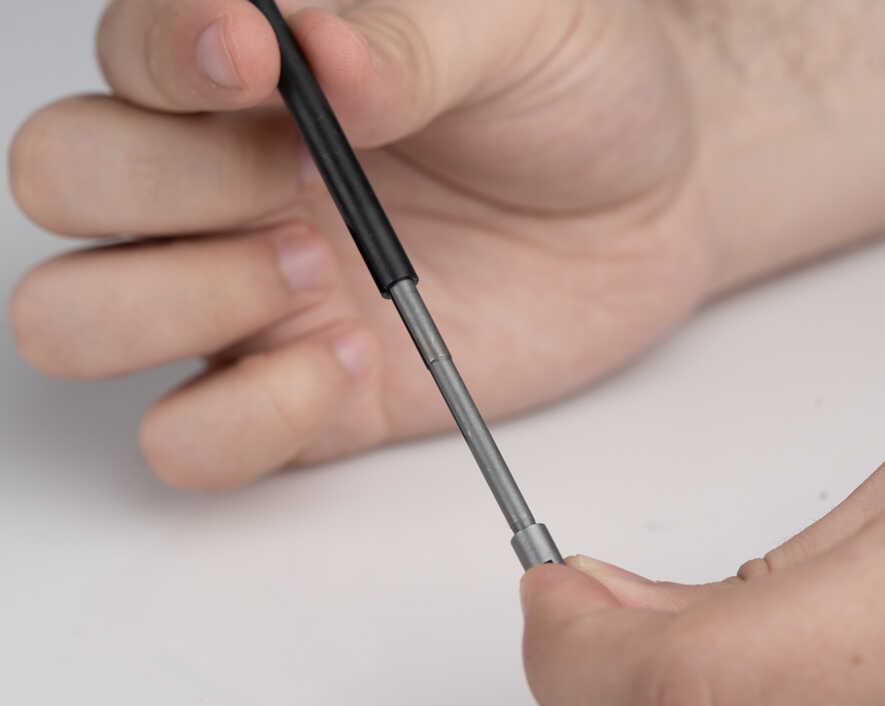

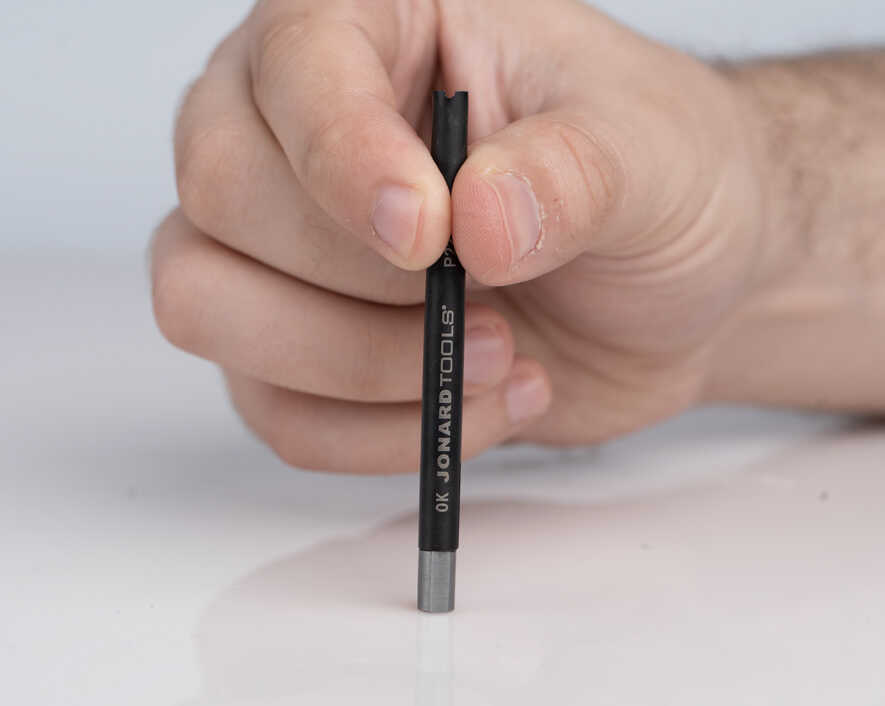

Compatible Wrap Sleeve Part No.: P2224, P2224INS
| Specifications | |
| Sleeve Part No. | P2224 and P2224INS (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 22-24 AWG (0.65 mm - 0.50 mm) |
| Minimum Terminal Diagonal | 0.061" (1.54 mm) |
| Maximum Terminal Diagonal | 0.085" (2.15 mm) |
| Terminal Hole Diameter | 0.086" (2.18 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Effective Radius | 0.117" (2.97 mm) |
| Length | 3(7.9375cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013391 |
