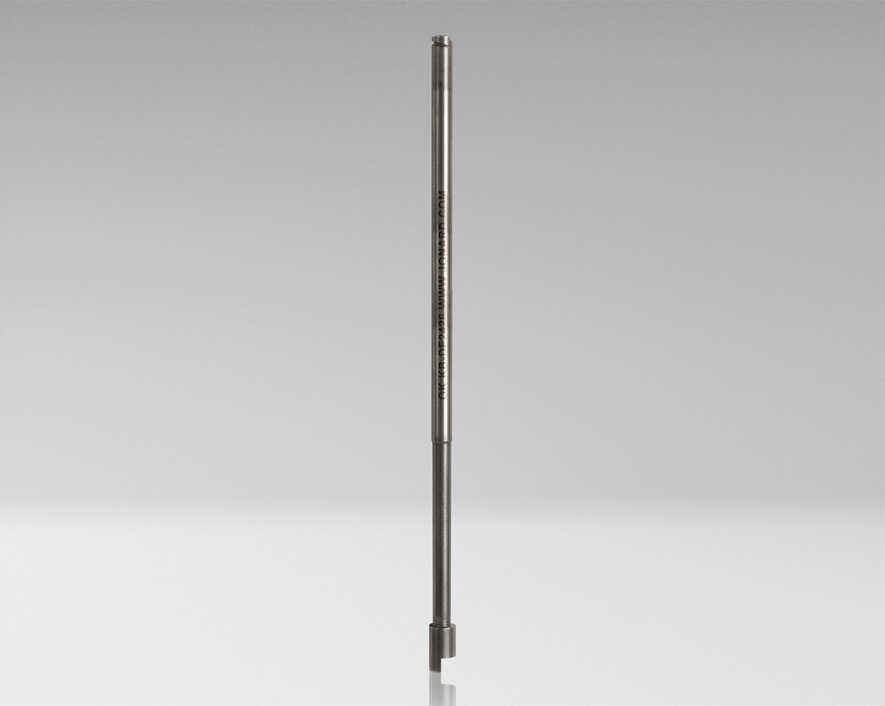

Jonard - KB-DF2426 - Wrap/Unwrap Bit, 24-26 AWG
Part number:
KB-DF2426
Price:
Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 24-26 AWG wire. This bit features the following:
Features:
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
| Specifications | |
| Wrap Function | Wrap, Unwrap |
| Wire Gauge | 24-26 AWG (0.50-0.40 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 0.50" (12.70 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Effective Radius | 0.098" (2.48 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 5(13.0175cm) |
| Weight | 0.03 lb (12.258 g) |
| UPC # | 811490013384 |
