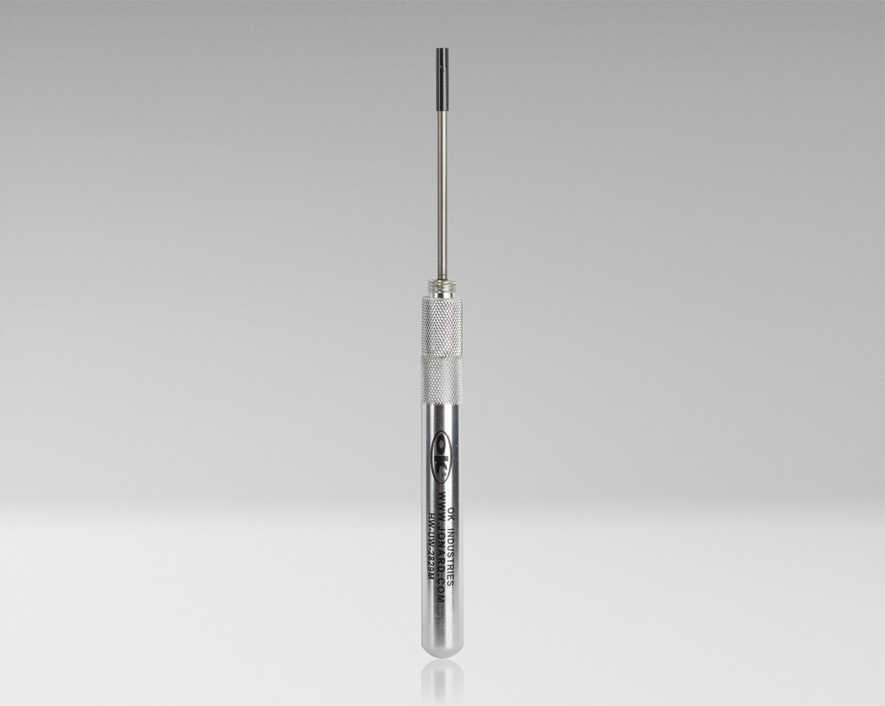

Jonard - HW-UW-2829M - Wrap-Unwrap Tool, 28-29 Awg
Part number:
HW-UW-2829M
Price:
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 28-29 AWG (0.32 mm 0.29 mm diameter) wire. This hand wrap tool also features the following:
Features:
- For use on 0.025" (0.63 mm) square terminals whose center-to-center of the pins are 0.100" (2.54 mm)
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical

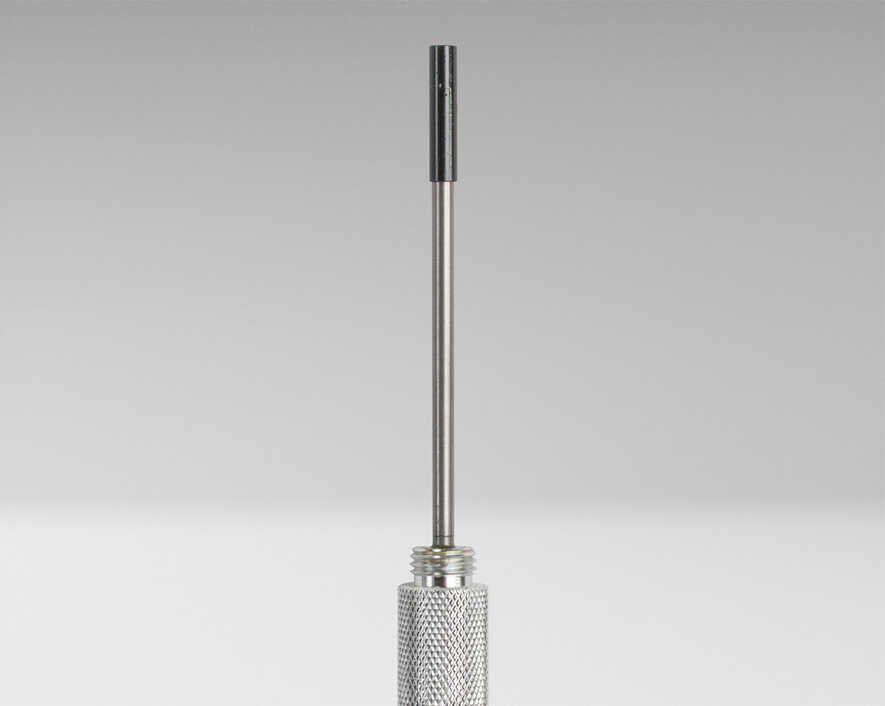

- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
| Specifications | |
| Wrap Type | Modified |
| Wire Gauge | 28-29 AWG (0.32-0.29 mm) |
| Maximum Insulation Diameter | 0.036” (0.91 mm) |
| Wrap Terminal Hole Diameter | .040” (1.02mm) |
| Wrap Terminal Hole Depth | .75” (19.05mm) |
| Wrap Outside Diameter | .156” (3.96mm) |
| Wrap Post Size | 0.025” (0.63 mm) |
| Unwrap Wire Gauge | 24-32 AWG (0.5-0.20 mm) |
| Unwrap Terminal Hole Diameter | .038” (0.96mm) |
| Unwrap Terminal Hole Depth | 1” (25.40mm) |
| Features | Provides 1.5 to 2 turns of insulation |
| For Use With | .025” (0.63 mm) square terminals on .100” (2.54 mm) center to center of the pins. |
| Handle Type | Aluminum |
| Weight | 0.148 lbs |
| UPC No | 811490013605 |
