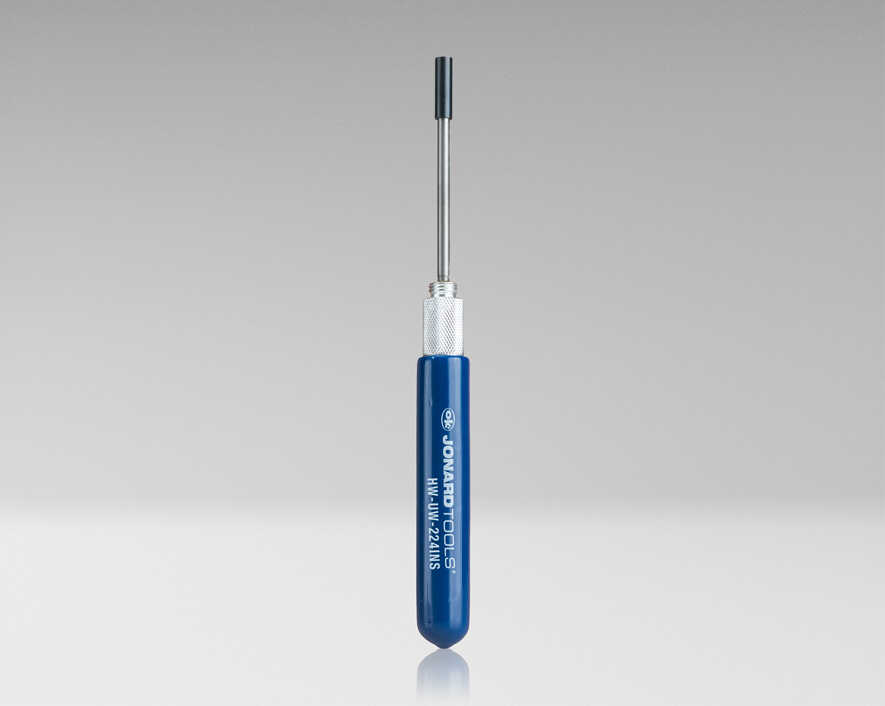

Jonard - HW-UW-224INS - Wrap-Unwrap Tool, 22-24 Awg Insulated
Part number:
HW-UW-224INS
Price:

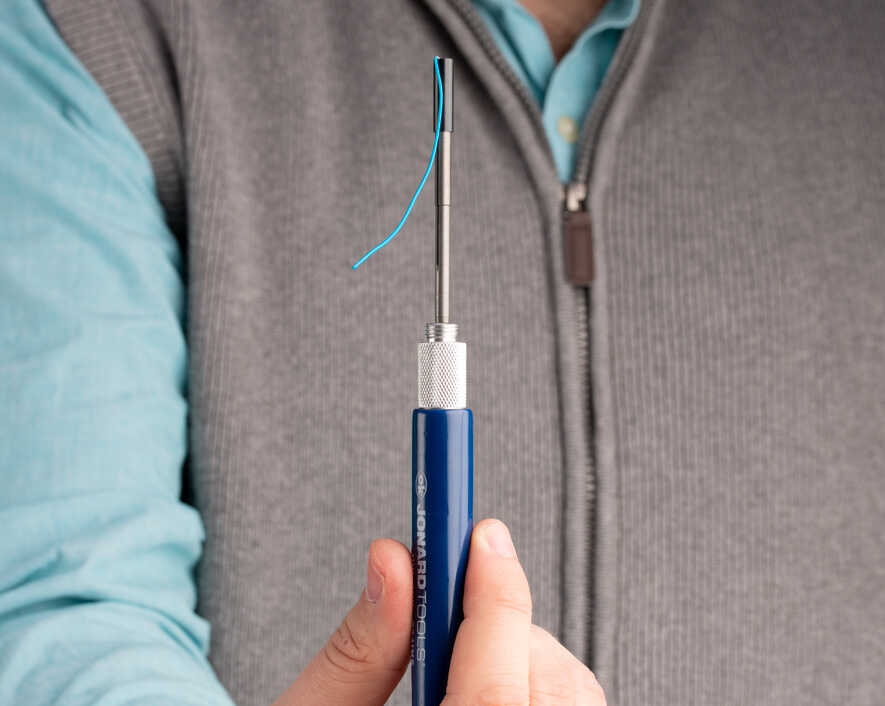

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 22-24 AWG (0.65 mm - 0.50 mm diameter) wire. This hand wrap tool also features the following:
Features:
- Insulated handle for dielectric protection
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical

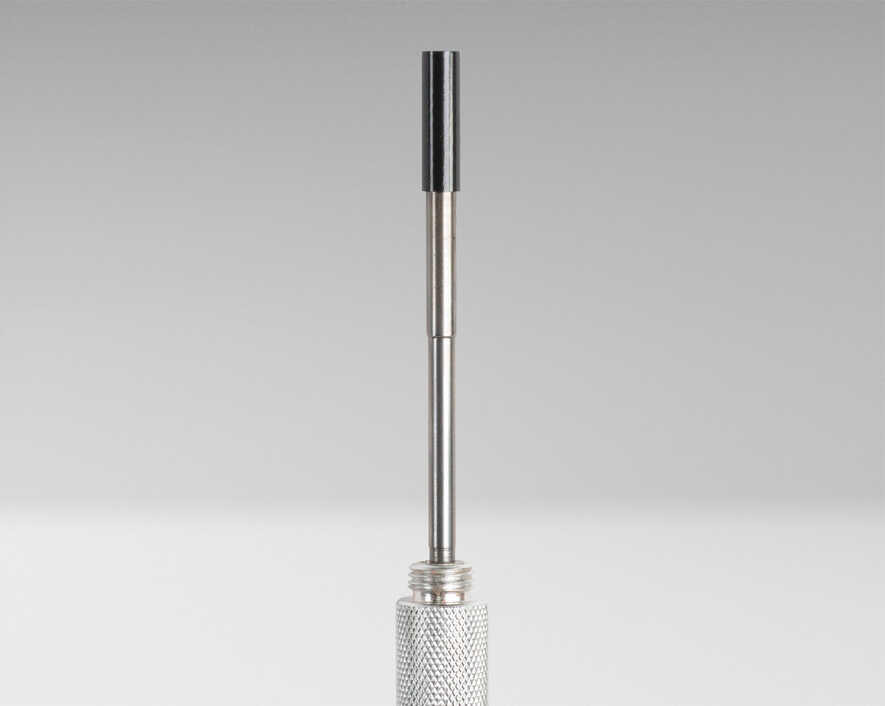

- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
| SPECIFICATIONS PART NO. | HW-UW-224INS |
| WRAP TYPE | Regular |
| WIRE GAUGE | 22-24 AWG (0.65-0.50 mm) |
| WRAP TERMINAL HOLE DIAMETER | .075” (1.90mm) |
| WRAP TERMINAL HOLE DEPTH | 1” (25.40mm) |
| WRAP OUTSIDE DIAMETER | .218” (6.35mm) |
| WRAP POST SIZE | 0.045” (1.14 mm) |
| UNWRAP WIRE GAUGE | 18-19 AWG (1.0-0.91 mm) |
| UNWRAP TERMINAL HOLE DIAMETER | .075” (1.90mm) |
| UNWRAP TERMINAL HOLE DEPTH | 1” (25.40mm) |
| HANDLE TYPE | Aluminum |
| WEIGHT | 0.161 lbs |
