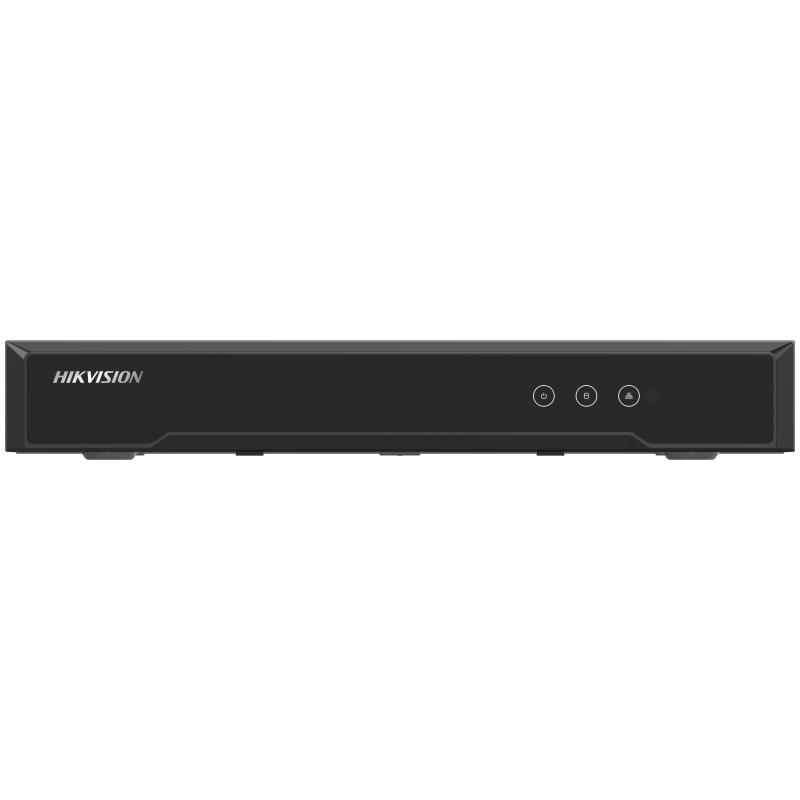

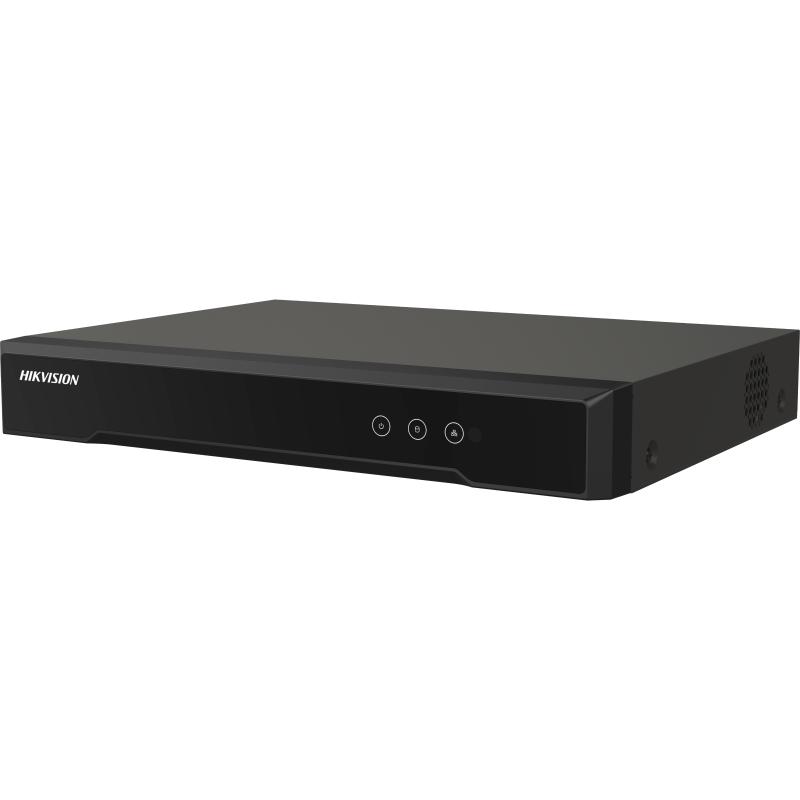

HIKVISION - iDS-6704HUHI-M - 4-ch 5 MP 1U H.265 DVS
Part number:
iDS-6704HUHI-M
Price:
4-ch 5 MP 1U H.265 DVS
Features:
- 4 channels and 1 HDD 1U AcuSense DVS
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
| Specification | |
| Video and Audio | |
| IP Video Input | 2-ch (up to 6-ch) |
| Up to 8 MP resolution | |
| Enhanced IP mode on: | |
| 4-ch (up to 8-ch), each up to 4 Mbps | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | 4-ch;BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), |
| resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| Synchronous playback | 4-ch |
| HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| *: The 8 MP signal input is only available for channel 1. | |
| AHD Input | 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI Input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| Audio Output | 1-ch, RCA (Linear, 1 KO) |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KO) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | Main stream: |
| 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | |
| *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. | |
| Sub-stream: | |
| WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Rear panel: 1 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC |
| Consumption | = 10 W |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 315 × 240 × 48 mm |
| Weight | = 1.16 kg (2.6 lb) |
