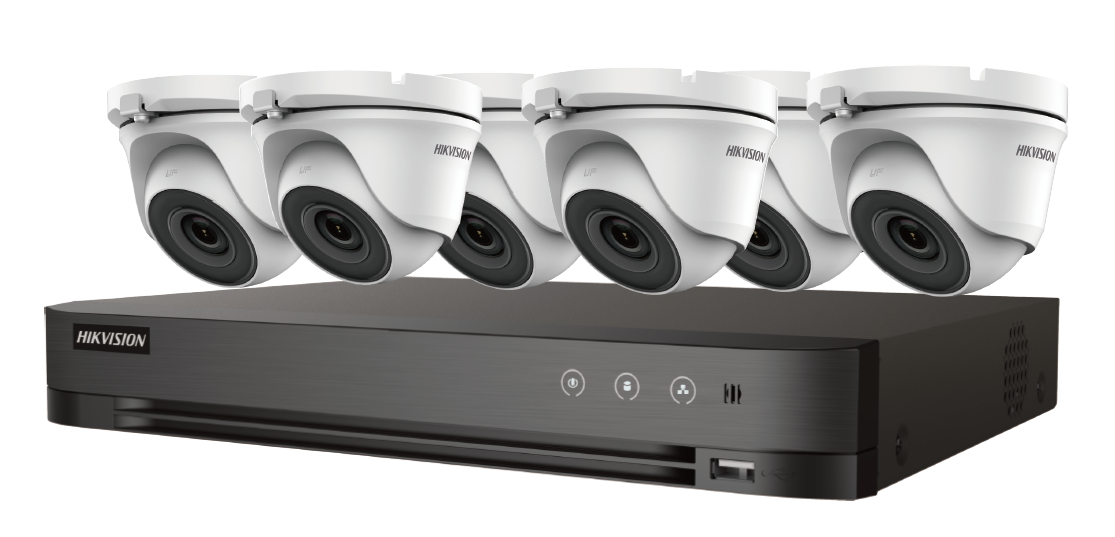

Hikvision - EKT-K82T26 - 8-ch 2MP Turbo Kit, 6cam+2TB
Part number:
EKT-K82T26
Price:
2 MP Value Express TurboHD Kits
Cameras:
• 2 MP High Performance CMOS
• Up to 1920 x 1080 Resolution
• 2.8 mm Fixed Lens
• EXIR 2.0 with up to 65 ft (20 m) IR Range
• Smart IR
• Digital WDR, BLC
• IP66 Protection
DVR:
• Up to 4 MP Resolution Recording
• Up to 6- or 12-ch 6 MP IP Camera Input
• H.265+/H.265/H.264+/H.264
• 4- or 8-ch Synchronous Playback
• 1 SATA Interface (up to 10 TB Capacity per HDD)
Features:
- Hikvision EKT-KxxT2x Series 2 MP Value Express
- TurboHD Kits are cost-effective solutions for value oriented users.
- Each kit is supplied with four or six TurboHD
- cameras with 2 MP image sensors and a 4-, or 8-
- channel DVR in the same box.
- Kit DVRs are pre-installed with a 1 or 2 TB HDD
| Specification | |
| Camera | |
| Number of Cameras | 6 |
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Minimum Illumination | 0.01 lux @ (ƒ/1.2, AGC on), 0 lux with IR |
| Shutter Speed | 1/25 (1/30) s to 1/50,000 s |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 103° |
| Lens Mount | M12 |
| Day/Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Synchronization | Internal synchronization |
| Video Frame Rate | 1080p @ 30 fps |
| Menu | |
| AGC | High/medium/low/off |
| D/N Mode | Auto/color/BW (black and white) |
| BLC | Supported |
| DWDR | Supported |
| Language | English |
| Functions | Brightness, sharpness, DNR, mirror, smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Maximum 4 W |
| Protection Level | IP66 |
| Material | Metal |
| IR Range | Up to 650 ft (20 m) |
| Dimensions | Ø3.38" x 2.74" (Ø82.6 mm x 69.66 mm) |
| Weight | ~0.51 lbs (~230 g) |
| DVR | |
| DVR Model | ERT-K2082 |
| Video/Audio Input | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog Video Input | 8-ch |
| TurboHD Input | 4 MP, 3 MP: 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HD-CVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| IP Video Input (Up to 6 MP) | 4 + 1 for each analog channel not used, up to 12 maximum |
| Audio Compression | G.711u |
| Audio Input/Two-Way | Audio 1-ch, RCA (2.0 Vp-p, 1K O) |
| Video/Audio Output | |
| HDMI/VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Encoding Resolution | When 1080p Lite mode not enabled: 4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF |
| Main Stream Frame Rate | |
| 1080p Lite Mode | 4 MP stream access: 4 MP lite @ 15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N) |
| Not Enabled | 1080p stream access: 1080p/720p @ 15 fps 720p stream access: 720p |
| 1080p Lite Mode | 4 MP stream access: 4 MP lite @ 15 fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N) |
| Enabled | 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N) 720p stream access: 720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N) |
| Sub-Stream Frame Rate | WD1/4CIF/2CIF @ 12 fps; CIF/QVGA/QCIF @ 25 fps (P)/30 fps (N) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Audio Output | 1-ch, RCA (linear, 1K O) |
| Audio Bit Rate | 64 Kbps |
| Dual Stream | Supported |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 4-ch |
| Network | |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Hard Drive Size | 2 TB |
| External Interface | |
| Network Interface | 1, RJ-45 10M/100M self-adaptive Ethernet interface |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC |
| Consumption (w/o HDD) | ≤12 W |
| Working Temperature | +14° to +131° F (-10° to +55° C) |
| Working Humidity | 10% to 90% non-condensing |
| Dimensions | 10.2" × 8.7" × 1.8" (260 mm × 222 mm × 45 mm) |
| Weight | (w/o HDD) =2.2 lb (=1 kg) |
