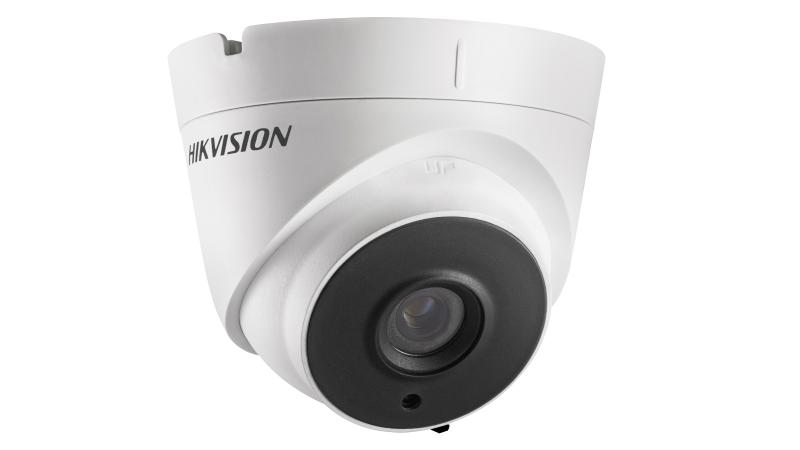

Hikvision - DS-2CC52D9T-IT3E 2.8mm - 2 MP PoC Fixed Turret Camera, 2.8mm
Part number:
DS-2CC52D9T-IT3E 2.8mm
Price:
2 MP PoC Fixed Turret Camera, 2.8mm
Features:
- 2 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 40 m IR distance
- Water and dust resistant (IP67)
- Dual outputs (HDTVI and CVBS signals output simultaneously)
- Transmits both HD video and power over the same coaxial cable
| Specification | |
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s |
| Day & Night | Auto/Color/B/W (White & Black) |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Slow Shutter | Max.: 30 times |
| Application | Indoor/outdoor/indoor1/low light |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm) |
| Lens Mount | M12 |
| Image | |
| Image Settings | Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title, LSC (Lens Shading Correction) |
| Frame Rate | PAL: 1080p@25fps, NTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (White & Black) |
| Wide Dynamic Range (WDR) | > 120 dB |
| Image Enhancement | WDR/BLC/HLC/OFF |
| Privacy Mask | ON/OFF, 8 programmable privacy masks |
| Noise Reduction | ON/OFF |
| White Balance | ATW/AWC-SET/MANUAL |
| AGC | Support |
| Interface | |
| Video Output | TVI&CVBS |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Material | Metal & Plastic |
| Dimension | Φ 110 mm × 93.2 mm (4.33" × 3.67") |
| Weight | Approx. 200 g (0.44 lb.) |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation) |
| Communication | Up the coax, Protocol: HIKVISION-C |
| Power Supply | 12 VDC ±30%/PoC.af |
| Consumption | Max. 4 W |
| IR Range | Up to 40 m |
| Approval | |
| Protection | IP67 |
