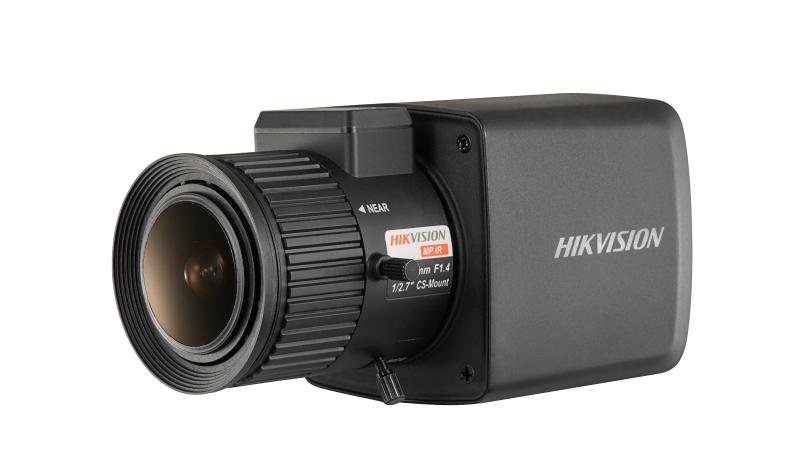

Hikvision - DS-2CC12D8T-AMM - 2 MP Ultra Low Light Box Camera
Part number:
DS-2CC12D8T-AMM
Price:
2 MP Ultra Low Light Box Camera
Features:
- 2 MP high performance box camera
- Strong night performance, capturing images in ultra-low light down to 0.005 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Mount | C/CS mount |
| Iris Type | DC drive |
| Image | |
| Image Settings | Brightness; Sharpness; Mirror; AGC |
| Frame Rate | PAL: 1080p@25fps; NTSC: 1080p@30fps |
| Wide Dynamic Range (WDR) | ≥120 dB |
| Image Enhancement | BLC |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | 1 HD analog output; 1 CVBS output (75Ω/BNC) |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC ± 25%, max. 3 W |
| Material | Metal |
| Dimension | 69.29 mm × 54 mm × 56 mm (2.73" × 2.13" × 2.2") |
| Weight | Approx. 175 g (0.39 lb.) |
| Operating Condition | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 80% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
