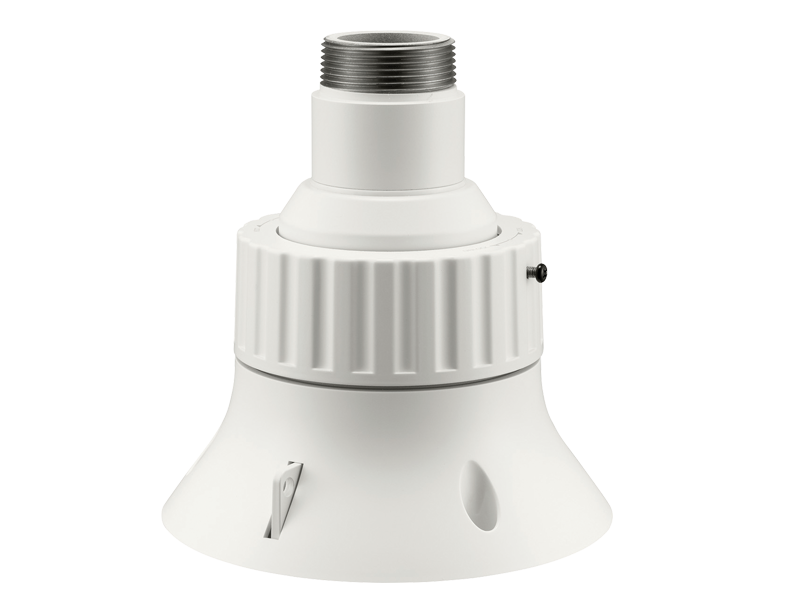

Samsung - SBP-301HF - Built-in SFP Install Base for PTZ Cameras
RJ-45 to Fiber mounting accessory for PTZ
Compatible with:
| SNP-6321H | SNP-5321H | |
| SNP-L6233H | SNP-L5233H |
Part number:
SBP-301HF
Price:
- Aluminum
- LC SFP port type
- 100Mbps Ethernet speed (Default speed : 1000Mbps)
- IEEE 802.3u, IEEE 802.3z support
- Audio input/output, 3.5mm type
- 24V AC, IP66, IK10, -50°C to +55°C
| Materials | Aluminum |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Dimensions (WxHxD) | Ø163.9 x 157.9mm (Ø6.45" x 6.22") Ø163.9 x 187.9mm (Ø6.45" x 6.7") (With NPT-coupling) |
| Weight | 1.1Kg (2.43 lb), 1.4Kg (3.09 lb) (With NPT-coupling) |
| Color | Ivory |
| Applicable Model | SNP-6321H/L6233H/ 5321H/5321H |
Name
Description
Size
Downloads
File
SBP-301HF Specifications
0.4mb
File
PTZ/Bullet Mounts Specifications
1.5mb
File
Peripheral Specifications
0.2mb
File
Fiber Accessory Series Quick Guide
2.6mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
File
SBP-301HF Manual
2.2mb
