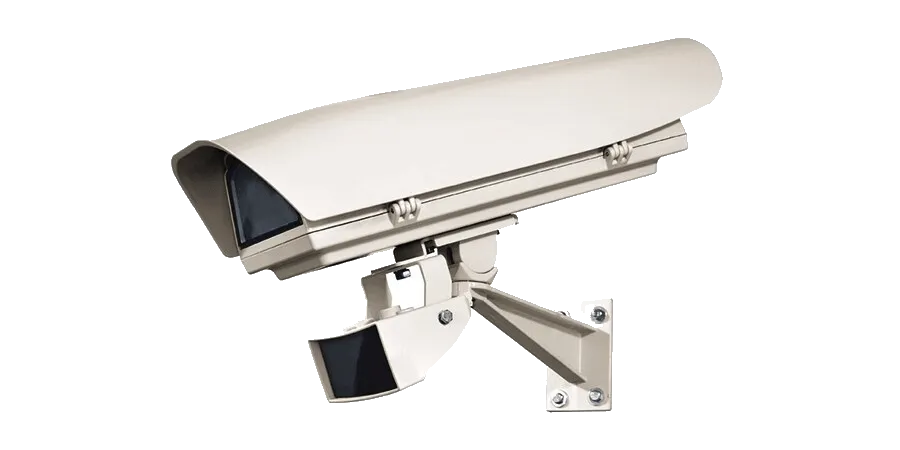

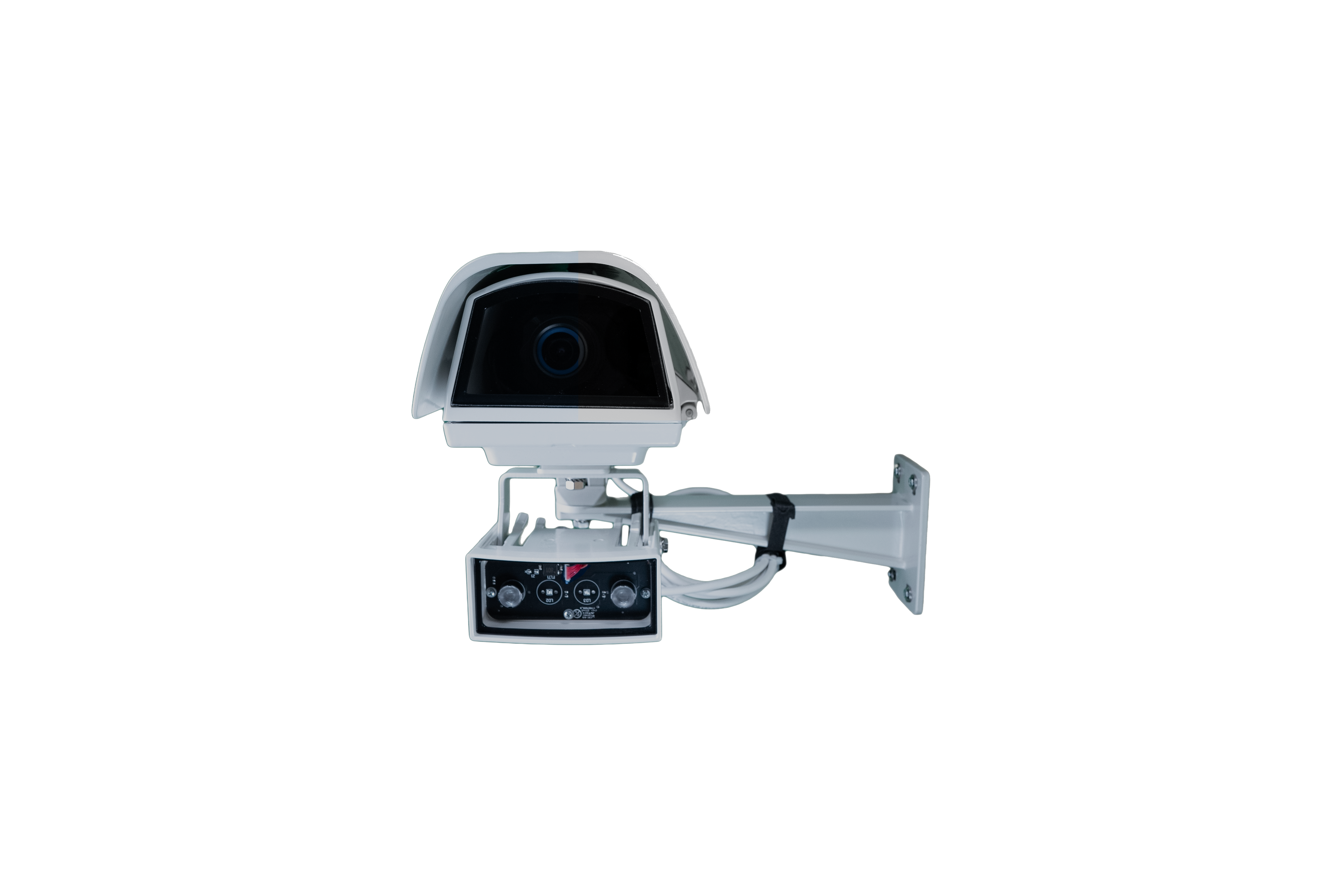

Hanwha - PNB-A9091RLPH - 4K Moderate Speed (up to 75MPH) LPR Box Camera Kit with Enclosure and IR, Licensed with Wisenet Road AI. Max. 4K resolution, 12-50 mm lens, H.265, H.264, MJPEG codec, WiseStream III, Includes PoE+ Camera enclosure with Wall m
4K Moderate Speed (up to 75MPH) LPR Box Camera Kit with Enclosure and IR, Licensed with Wisenet Road AI. Max. 4K resolution, 12-50 mm lens, H.265, H.264, MJPEG codec, WiseStream III, Includes PoE+ Camera enclosure with Wall mount and IR LPR + MMCR: Make, Model & Color* Recognition on the Edge. 32GB Micro SD storage for up to 10,000 LPR/Vehicle images, Licensed open platform application for multiple regions/countries (USA, Canada, Mexico, Brazil, Uruguay, Paraguay, Argentina, Colombia, Chile) (* Color recognition only during day time)
Features:
- 4K resolution
- Day & Night(ICR), WDR(120dB)
- H.265, H.264, MJPEG codec, WiseStreamⅡ
- Wisenet Road AI application (Pre-installed), supports USA, Canada, Mexico, Brazil, Uruguay, Paraguay, Argentina, Colombia, Chile
- License Plate Recognition (LPR)
- Make/Model/Color Recognition
- Allow / Deny list notification
- Smart Search (LP, Country, brand, model, color)
- Efficient Smart Search& Dashboard view (LP,Country/State, brand, model, color)
- Easy setup with wizard for optimal plate identification
| Video | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max.30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.2, 1/30sec) B/W : 0.003Lux(F1.2, 1/30sec) IR OFF, B/W:0Lux IR LED on (850nm, 30° beam pattern) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B,1280x720 for installation |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DCauto iris, P iris, Manual, I-CS |
| Mount Type | Cmount, CSmount |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day &Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR,SSDR |
| Digital Noise Reduction | SSNRⅤ |
| Digital ImageStabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| PrivacyMasking | 6ea, rectangle zones - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW/ AWC/ Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270) |
| Analytics | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch,AD,GE,Vicon, Honeywell) |

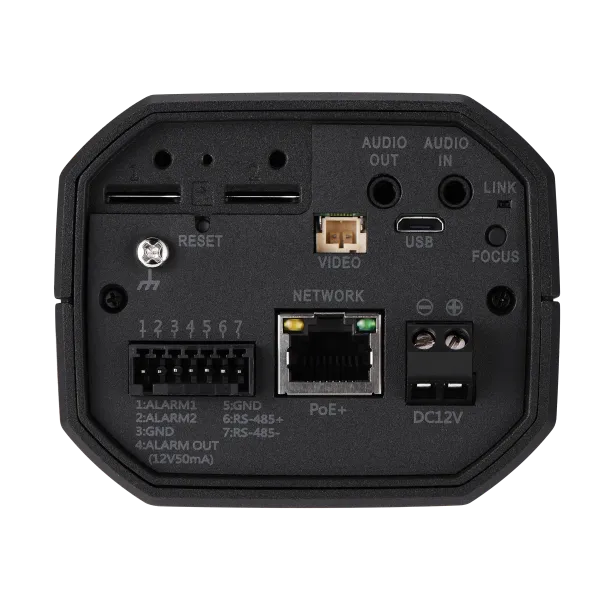

| Alarm I/O | Input 1ea / Output 1ea / DC12V Power(Max. 50mA) 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover, Audio playback |
| Audio In | Selectable(mic in/line in/Built in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726:16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Bitrate Control | H.264/H.265: CBRor VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP,UDP/IP, RTP(UDP), RTP(TCP),RTCP,RTSP, NTP, HTTP, HTTPS,SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP,DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTPAPI) Wisenet open platform | |
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Pre-installed with 32GB Micro SD to support 10,000 LPR images | |
| Memory | 4096MB RAM,512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature/ Humidity | -10°C ~ +55°C (14°F ~ +131°F) / Less than 90% RH |
| StorageTemperature/Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE+(IEEE802.3at), 12VDC PoE+ board with IPM technology (Intelligent power management) |
| Power Consumption | PoE+/12VDC-24VDC : Maximum 25.5W, at startup 23.5W, typical 22.8W |
| Ingress Protection | IP66 / IP67 |
| Mechanical | |
| Color / Material | Aluminum housing & mount, sunshield ABS, RAL9002 color |
| ProductDimensions /Weight | 6.30x20.24x6.93, Weight : 16.4lb |
