ENGENIUS - N-EnStationAC Kit - (Two) WI-FI 5 OUTDOOR LONG RANGE ACCESS POINT/WIRELESS BRIDGE
Part number:
N-EnStationAC Kit
Price:
EnGenius EnJet EnStationAC 5 GHz Outdoor 802.11ac Wave 2 Wireless Client Bridge/AP, featuring Time Division Multiple Access, cuts through RF-congested environments within Point-to-Point/MultiPoint applications. EnJet enabled the EnStationAC assigns time slots to each station, providing faster and more stable performance and avoiding the hidden node issue. With a high-gain 19 dBi dual-polarized directional antenna that extends the network up to 5 miles point-to-point. Use the EnStationAC’s secondary PoE pass through Gigabit port to power an additional PoE-compliant device such as an IP surveillance camera.
Features:
- EnJet technology features Time Division Multiple Access, cutting through RF-congested environments
- 11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz
- MU-MIMO improves performance & increases user device capacities
- Beamforming optimizes antenna signal, reception & reliability for device
- High 26 dBm transmit power extends and high Gain 19 dBi Directional Antennas
- IP55-Rated weatherproof & dustproof housing
- GigE PoE port & adapter included
| Standards |
| EnStationAC IEEE 802.11a/n/ac |
| EnStation5 IEEE 802.11a/n |
| EnStation2 IEEE 802.11b/g/n |
| Data Rates |
| EnStationAC Up to 867 Mbps on 5 GHz |
| EnStation5 Up to 300 Mbps on 5 GHz |
| EnStation2 Up to 300 Mbps on 2.4 GHz |
| Internal Antennas |
| EnStationAC / EnStation5 |
| (1) 19 dBi 5 GHz High-Gain Directional |
| EnStation2 |
| (1) 13 dBi 2.4 GHz High-Gain Directional |
| Physical Interface |
| EnStationAC |

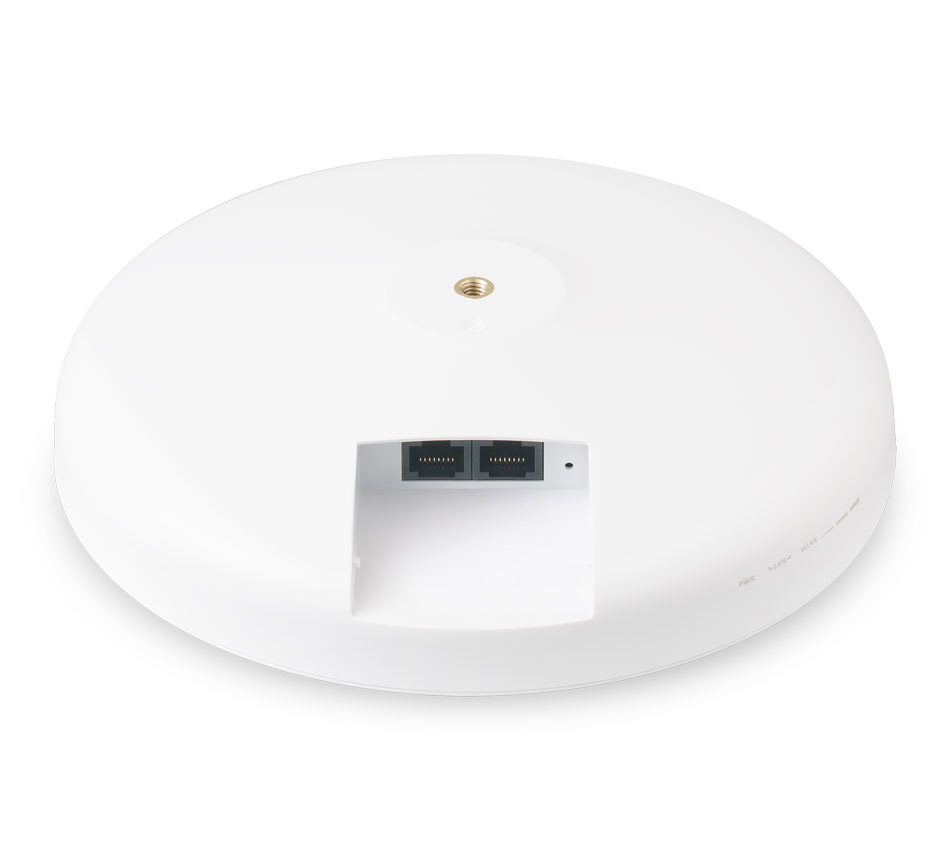

| (1) 10/100/1000 Mbps Port supports 802.3at/Proprietary 48V-54V PoE Input |
| (1) 10/100/1000 Mbps Port supports 802.3af PSE |
| Output |
| EnStation5 / EnStation2 |
| (1) 10/100 Mbps Port supports Proprietary 24V PoE |
| Input |
| (1) 10/100 Mbps Port supports extension of an |
| Internet signal |
| LED Indicators |
| 1 x Power |
| 1 x LAN 1 |
| 1 x LAN 2 |
| 1 x WLAN |
| Reset Button |
| Power |
| Power Source (PoE Adapter): |
| EnStationAC |
| 802.3at/48V-54V Proprietary Compliant Source |
| Active Ethernet (Power-over-Ethernet, PoE+) |
| EnStation5 / EnStation2 |
| 24V/.6A Proprietary Compliant Source |
| Active Ethernet (Power-over-Ethernet, PoE) |
| Power Consumption |
| EnStationAC 23.4W |
| EnStation5 7W |
| EnStation2 7.2W |
| Wireless & Radio Specifications |
| Operating Frequency |
| EnStationAC / EnStation5 5 GHz |
| EnStation2 2.4 GHz |
| Operation Modes |
| Access Point |
| Client Bridge |
| WDS Mode |
| Transmit Power |
| Up to 26 dBm |
| Up to 400 mW |
| Max Power is limited by regulatory power |
| Radio I |
| EnStationAC 11a/n/ac: 5.180-5.825 GHz |
| EnStation5 11a/n: 5.180-5.825 GHz |
| EnStation2 11b/g/n: 2.412-2.472 GHz |
| Radio Chains/Spatial Streams |
| 2x2:2 MIMO |
| Supported Data Rates (Mbps) |
| EnStationAC |
| 802.11a: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5~300 (MCS0 to MCS15) |
| 802.11ac: 6.5~866 (MCS0 to MCS9) |
| EnStation5 |
| 802.11a: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5~300 (MCS0 to MCS15) |
| EnStation2 |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5~300 (MCS0 to MCS15) |
| Supported Radio Technologies |
| EnStationAC |
| 802.11a/n/ac: Orthological Frequency-Division |
| Multiplexing (OFDM) |
| EnStation5 |
| 802.11a/n: Orthological Frequency-Division Multiplexing (OFDM) |
| EnStation2 |
| 802.11b: Direct-Sequence Spread-Spectrum (DSSS) |
| 802.11n: Orthological Frequency-Division Multiplexing (OFDM) |
| Channelization |
| EnStationAC |
| 802.11ac with 20/40/80 MHz Channel Width |
| 802.11n with 20/40 MHz Channel Width |
| 802.11a with 20 MHz Channel Width |
| EnStation5 |
| 802.11n with 5/10/20/40 MHz Channel Width |
| 802.11a with 5/10/20 MHz Channel Width |
| EnStation2 |
| 802.11n with 5/10/20/40 MHz Channel Width |
| 802.11b/g with 5/10/20 MHz Channel Width |
| Supported Modulation |
| EnStationAC |
| 802.11a/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, OFDM |
| & 256-QAM |
| EnStation5 |
| 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM |
| EnStation2 |
| 802.11b: BPSK QPSK, CCK |
| 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| Management |
| Auto Channel Selection |
| Multiple SSIDs: 8 SSIDS |
| BSSID Support |
| VLAN Tagging - Independent VLAN settings can be |
| enabled/disabled |
| VLAN Pass-through - Over WDS Bridge Mode |
| VLAN Per SSID - Isolate each SSID with Individual |
| VLAN |
| Wireless STA (Client) Connection List |
| Email Alert |
| Client Traffic Status |
| Configuration |
| Web Interface (HTTPS) |
| SSH |
| SNMP V1/v2c/v3 Support |
| MIB I/II, Private MIB |
| CLI Support |
| Save Configurations as Default |
| Control Features |
| RADIUS Accounting - Helps operators to offload 3G |
| to Wi-Fi seamlessly |
| CLI Comments Support |
| Distance Control (Ack Timeout) |
| Multicast Supported |
| RSSI Threshold |
| Wi-Fi Scheduler |
| Security |
| WEP Encryption: 64/128/152 bit |
| WPA/WPA2 Personal (WPA-EAP using TKIP AES) |
| WPA/WPA2 Enterprise (WPA-EAP using TKIP AES) |
| Hide SSID in Beacons |
| MAC Address Filtering (Up to 32 MAC addresses per |
| SSID) |
| 802.1x Authenticator |
| QoS |
| Compliant with IEEE 802.11e Standard |
| Environmental & Physical |
| Temperature Range |
| Operating: -4 °F to 140 °F (-20 °C to 60 °C) |
| Storage: -22 °F to 176 °F (-30 °C to 80 °C) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Waterproof |
| IP55-Rated Enclosure |
| Dimensions & Weights: |
| EnStation Device (Without Mounting Kit) |
| Weight: 1.01 lbs. (460 g) |
| Depth: 7.48” (190 mm) |
| Height: 1.50” (38 mm) |
| Packaging |
| Weight: 2.29 lbs. (1.04 kg) |
| Width: 9.72” (247 mm) |
| Length: 12.63” (321 mm) |
| Height: 3.46” (88 mm) |
| Package Contents |
| EnStation Outdoor CPE |
| Pole/Wall Mounting Kit |
| Mounting Screw Set |
| Quick Installation Guide |
| PoE Adapter (EPA5006GP) |
| Certifications |
| FCC, CE |
| Warranty: |
| 1 Year |
