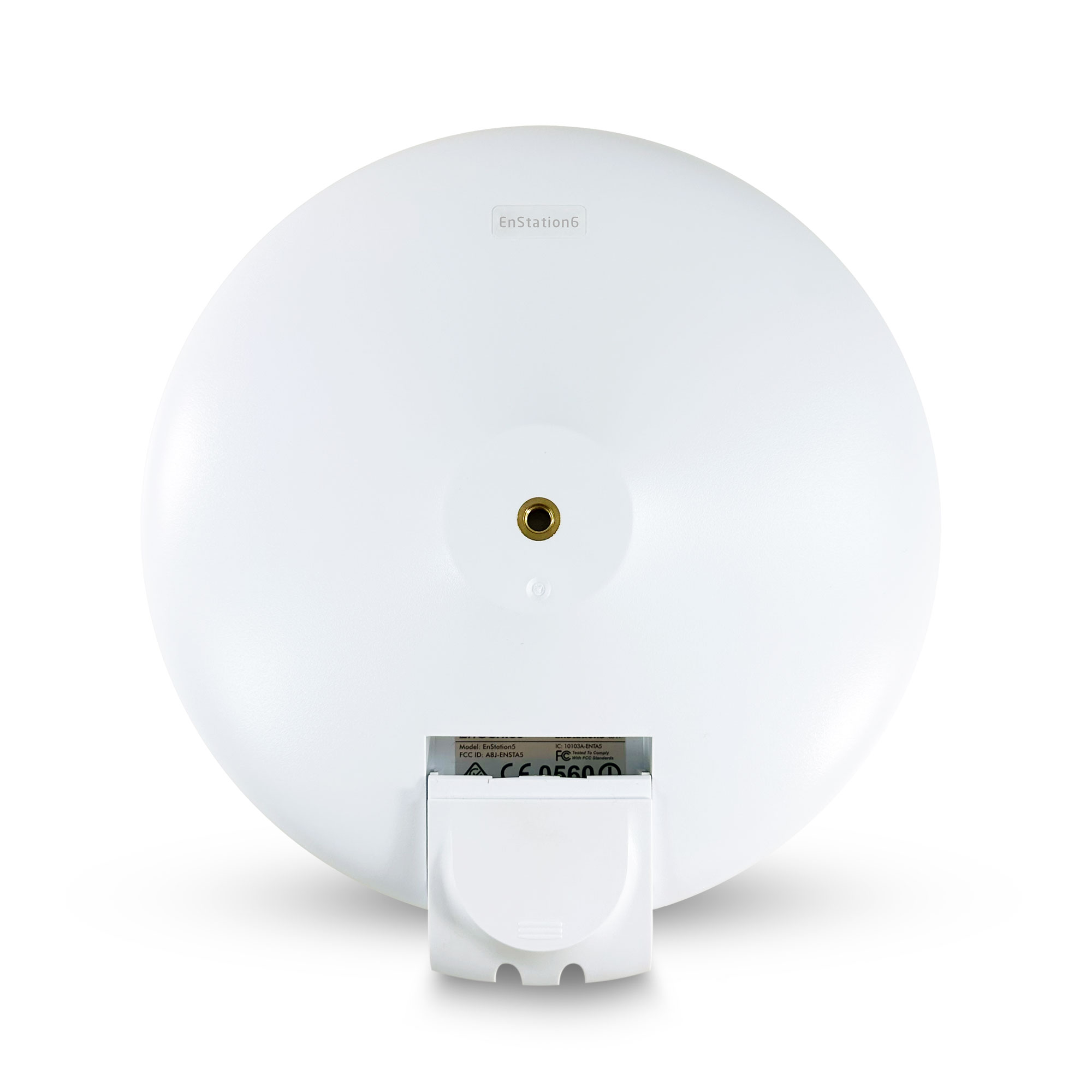

Engenius - EnStation6 - Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge
Part number:
EnStation6
Price:

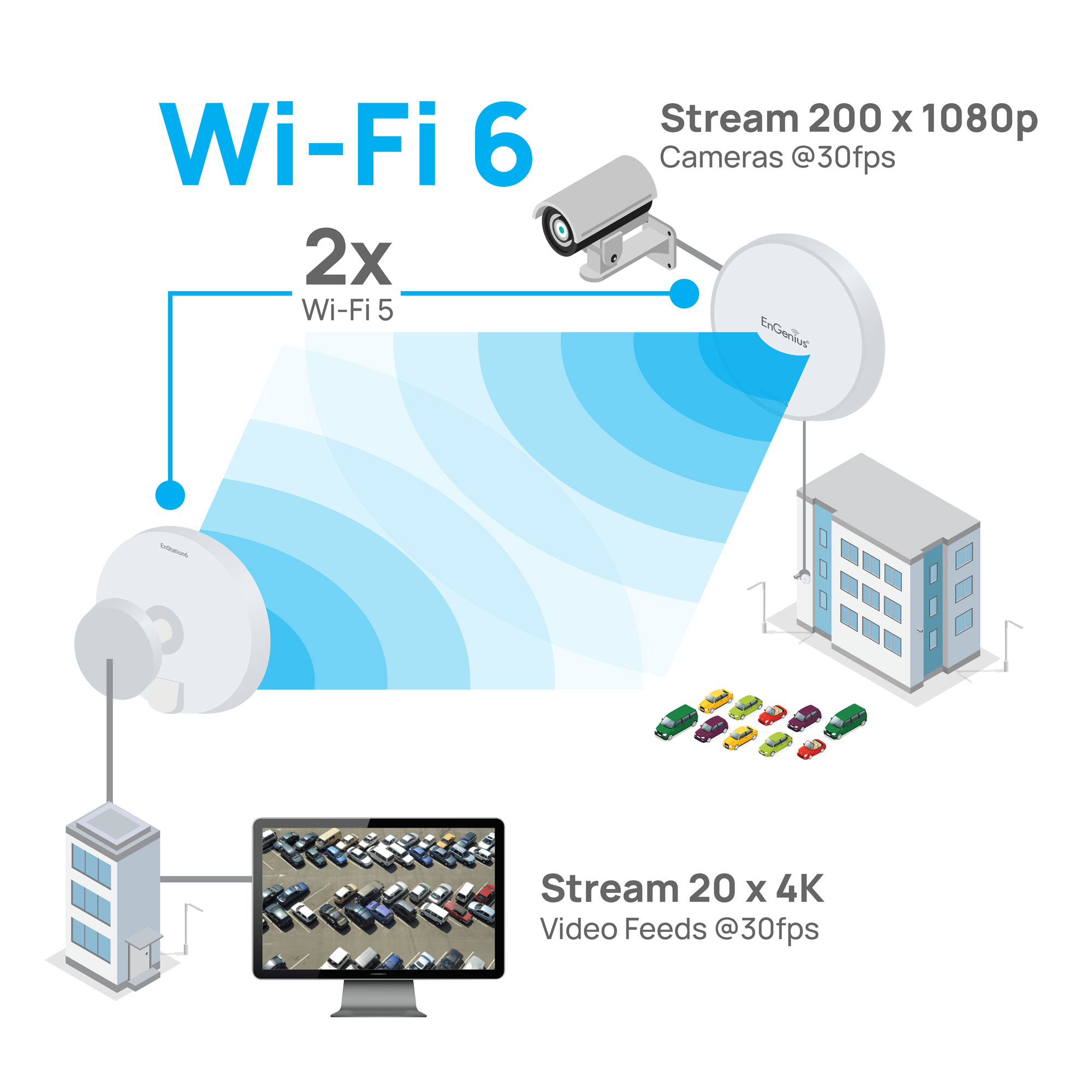

The EnGenius EnStation6 5GHz WiFi 6 (802.11ax) 2x2 Outdoor Wireless Bridge features the newest generation of wireless technology delivering high density Wi-Fi performance transmissions between buildings and across large outdoor properties without the exorbitant cost of running fiber cable. With advantages over the older Wi-Fi standards, the WiFi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The WiFi 6 “invisible wire” bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another WiFi 6 bridge in a point-to-point/multiple point deployment.
Features:
- WiFi 6 technology for high-performance and efficiency Wi-Fi in outdoor environments
- Beamforming optimizes antenna signal, reception & reliability for clients
- 2x2 directional antennas to support up to 1,200 Mbps in 5-GHz
- High 26 dBm transmit power extends Wi-Fi to yard or building-to-building
- High gain 19 dBi Integrated directional antenna extend wireless networks up to 5 miles point-to-point
- IP55-rated weatherproof & dustproof housing
- Simple, Intuitive interface via EnWiFi app for local AP configuring & monitoring
- Flexible Operation Modes: Access Point, Station, WDS Access Point, WDS Station
- Gigabit Ethernet PoE port supports flexible power options
Technical Specifications |
| Standards |
| 802.11a/n/ac/ax |
| Antenna - 5GHz |
| 19dBi |

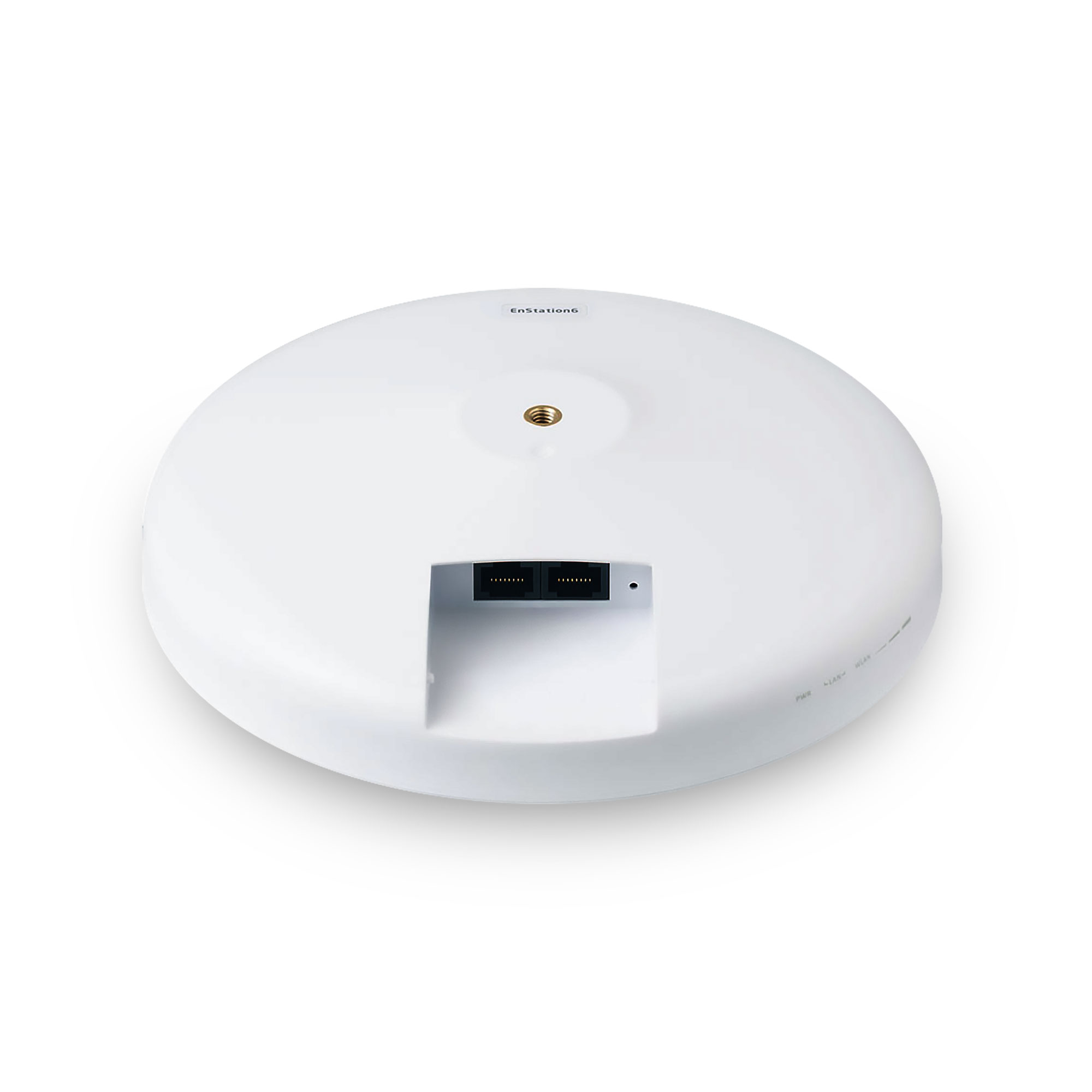

| Physical Interfaces |
| 1 x 10/100/1000 BASE-T(Proprietary PoE) |
| 1 x 10/100/1000 BASE-T |
| Proceed reset and reboot when pushing this button |
| LED indicators |
| 1 x Power |
| 1 x LAN |
| 1 x WLAN |
| 3 x Signal |
| Power Source |
| Proprietary 54V (EPA5006GR) |
| Maximum Power Consumption |
| PoE: Max. 11W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Single band 5 GHz |
| Operation Modes |
| AP/STA/WDS AP/WDS STA/ Repeater |
| Frequency Radio |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, |
| 5725 MHz ~ 5850 MHz |
| Transmit Power |
| 26 dBm |
| Radio Chains |
| 2 × 2:2 |
| SU-MIMO |
| Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data |
| rate with VHT80 to a 2x2 wireless device under the 5GHz radio. |
| MU-MIMO |
| Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data |
| rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client |
| devices under 5GHz simultaneously. |
| Supported Data Rates |
| 802.11ax: 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technology |
| 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) |
| 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization |
| 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256- |
| QAM) |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Max Concurrent User |
| 127 per radio |
| Environmental & Physical |
| Operating Temperature |
| -4º~140ºF/-20ºC~60ºC |
| Storage Temperature |
| -40Fº~176ºF/-40ºC~80ºC |
| Storage Humidity |
| Storage: 90% or less |
| IP Rating(Outdoor only) |
| IP55 |
| Surge Protection (Outdoor only) |
| 1KV |
| ESD Protection(Outdoor only) |
| Contact: 4KV Air: 8 K |
| Dimensions & Weight |
| Dimensions |
| Φ190 x 38 mm |
| Package Contents |
| 1 – EnStation6 Outdoor CPE |
| 1 – EPA5006GR with AC cord |
| 2 – Pole-Mounting Brackets |
| 1 – Wall-Mount Screw Set |
| 1 – Quick Installation Guide |
| Compliance |
| Safety Compliance |
| CB |
| WEEE |
| Yes |
| RoHS |
| Yes |
| Regulatory Compliance |
| FCC |
| CE |
| IC |
| UCKA |
