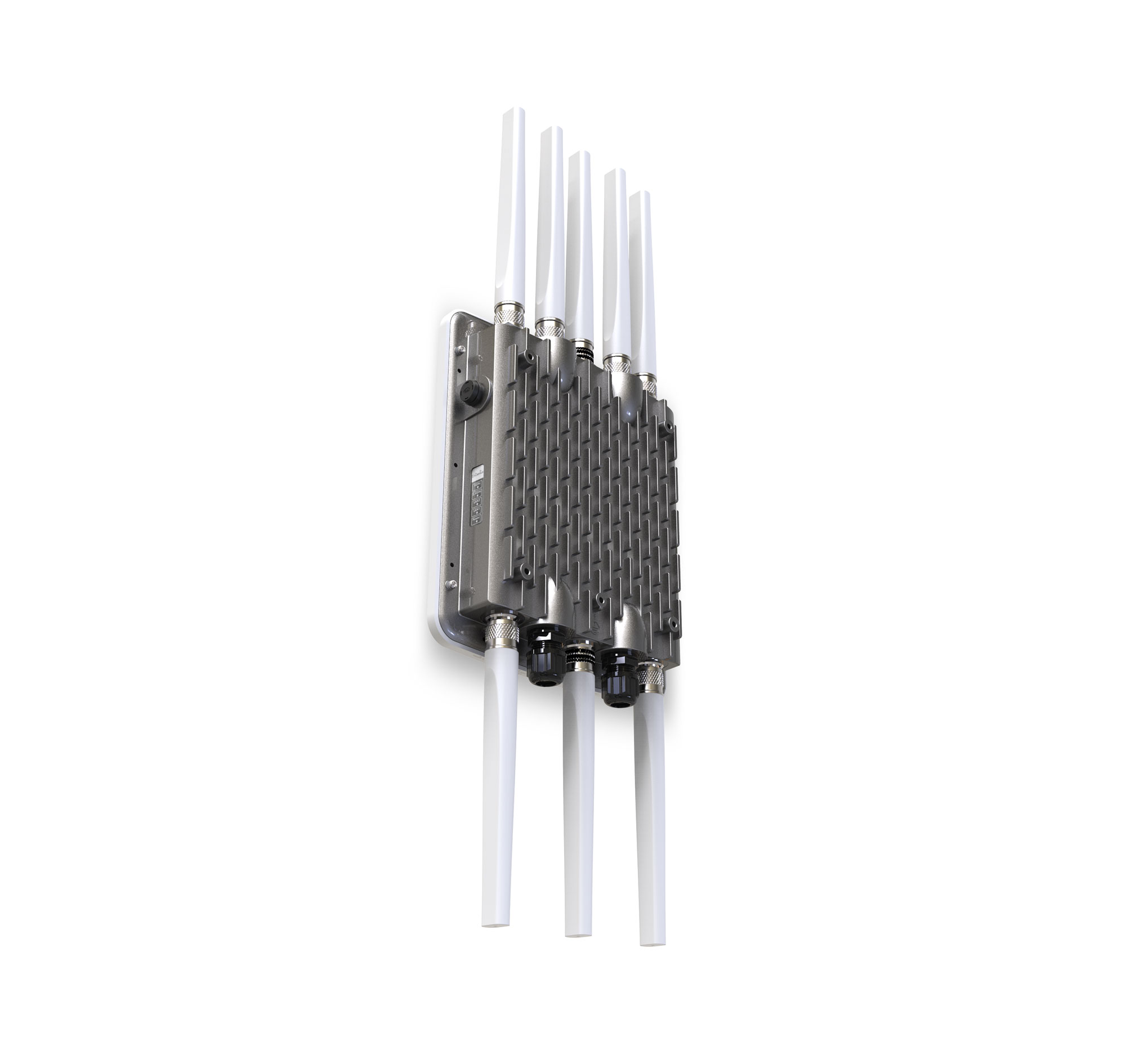

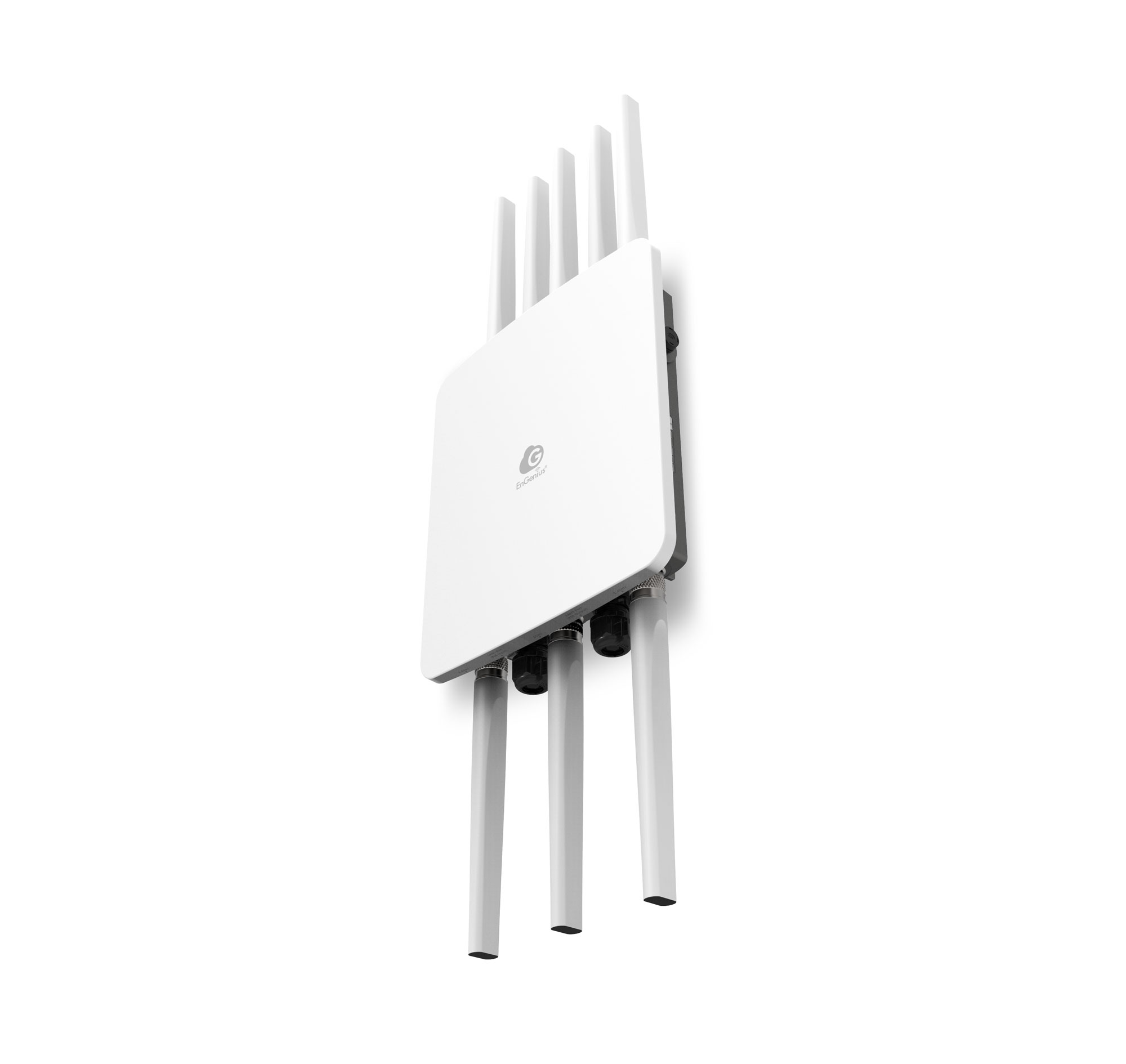

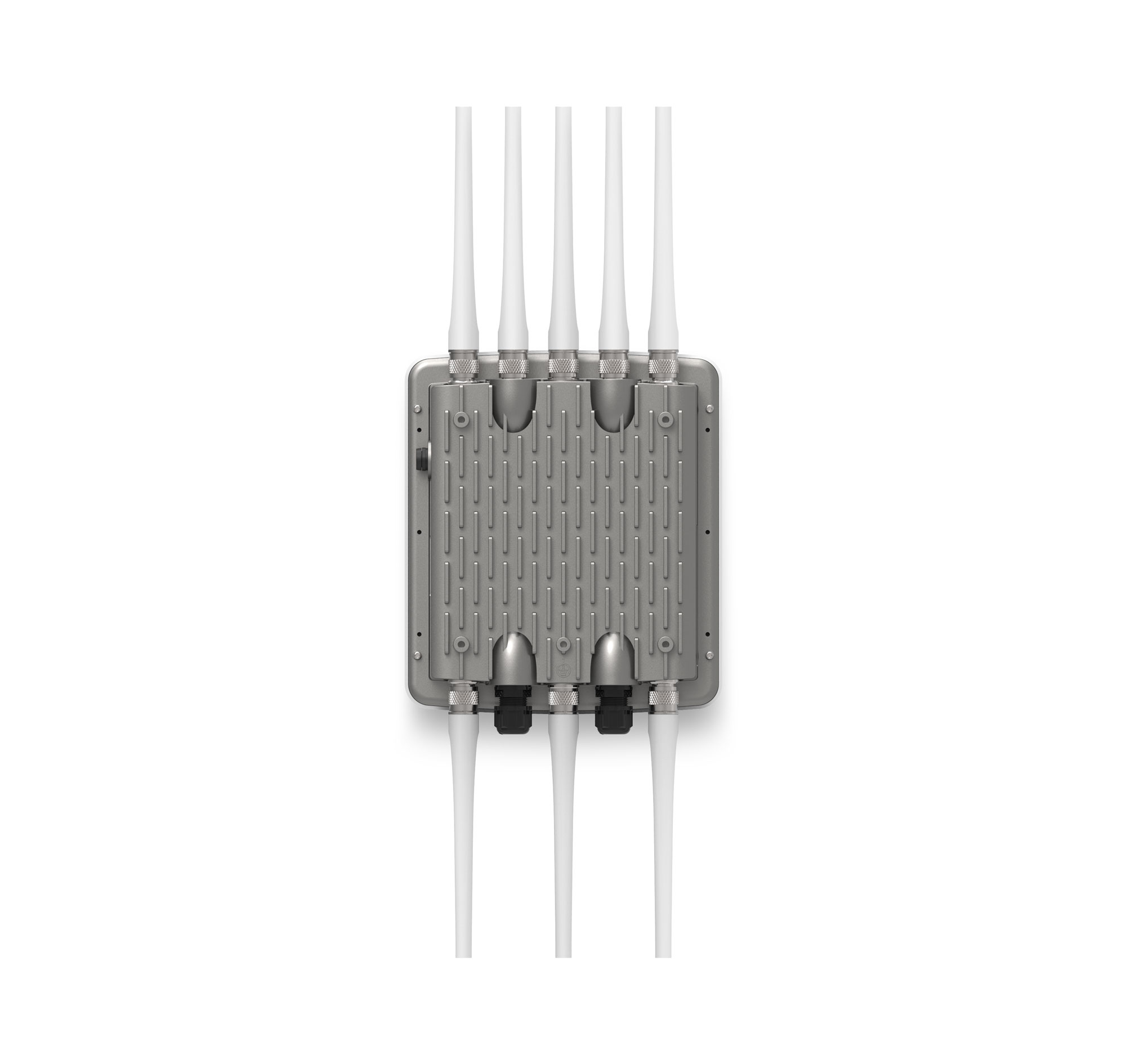

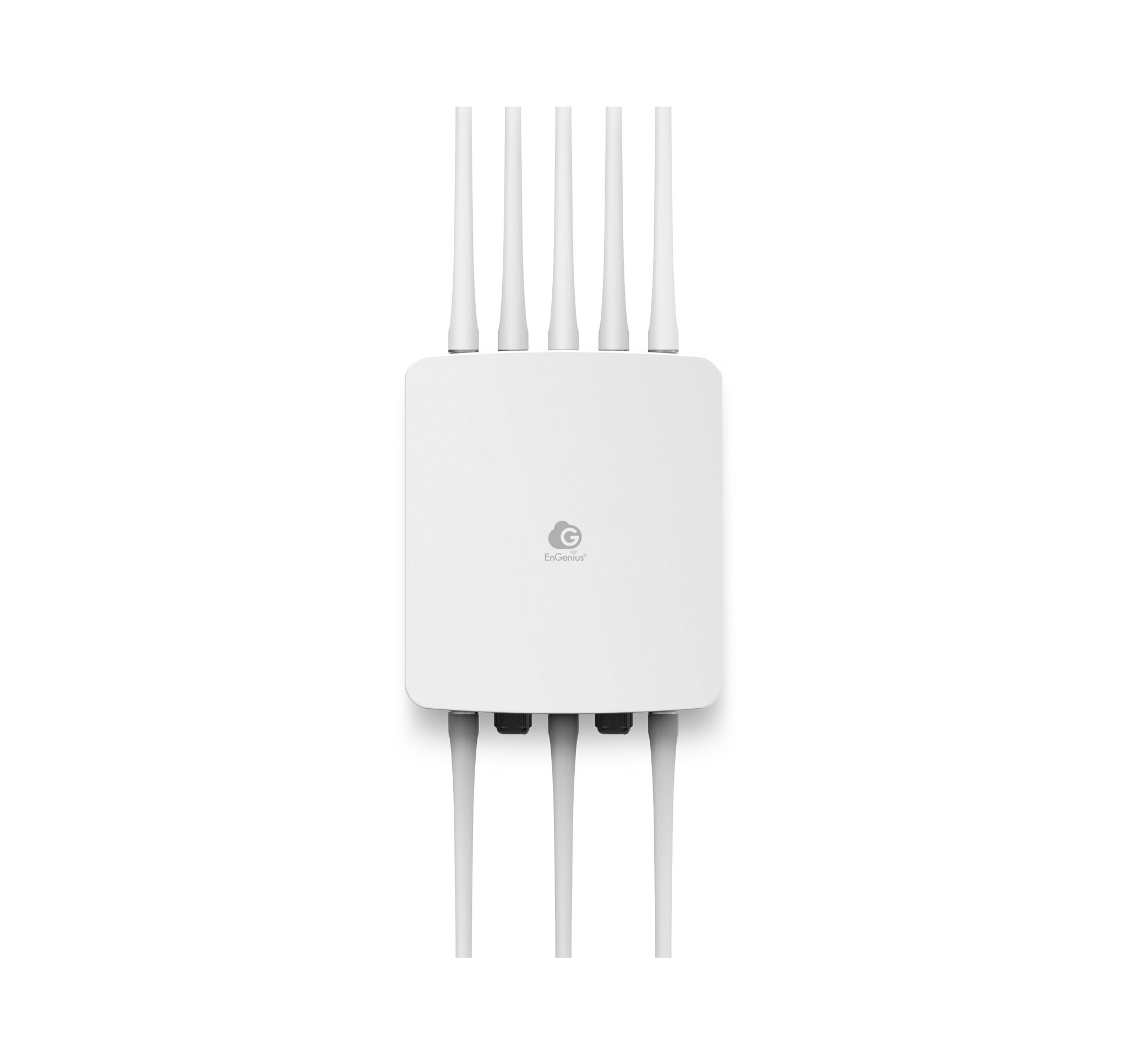

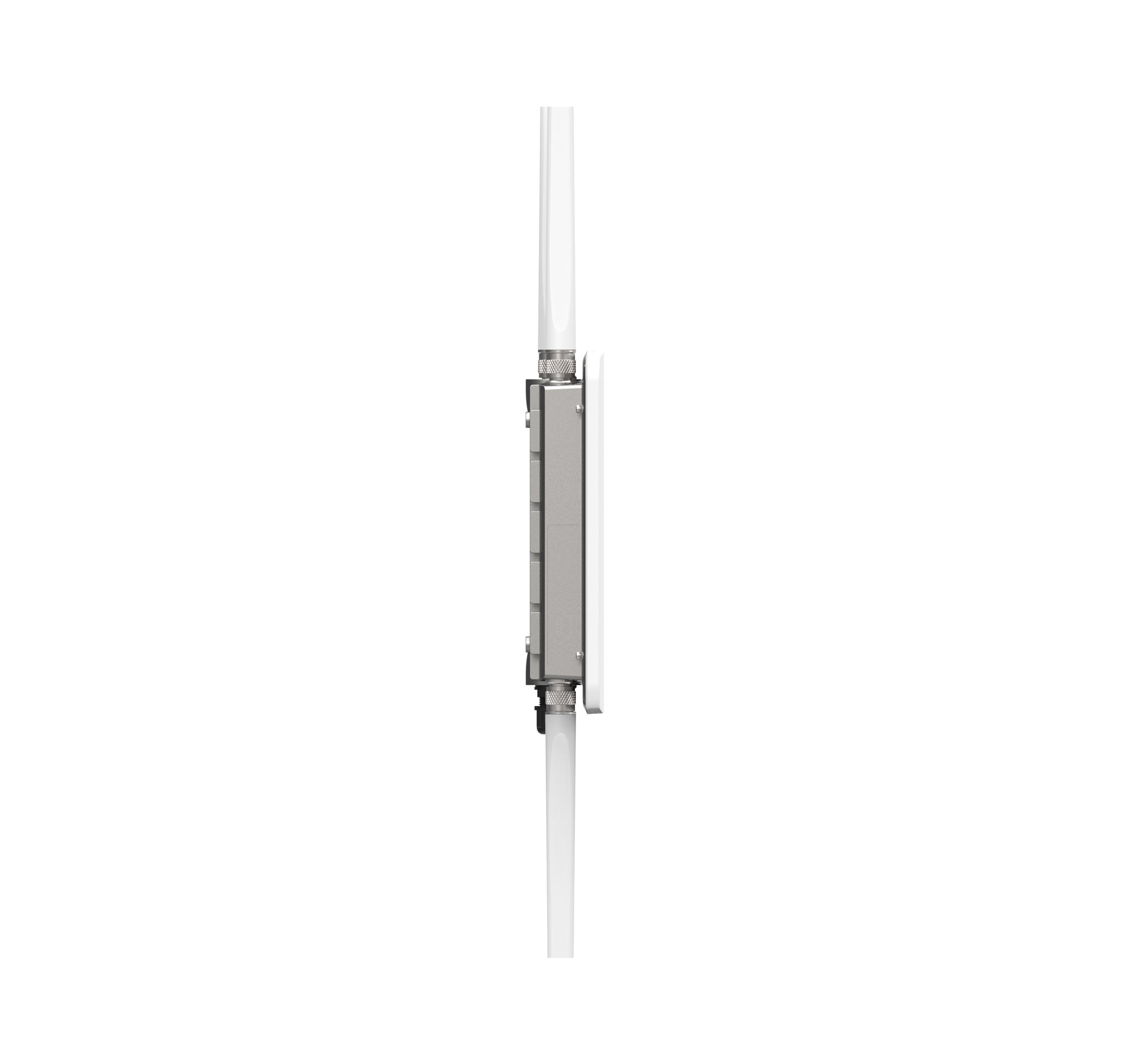

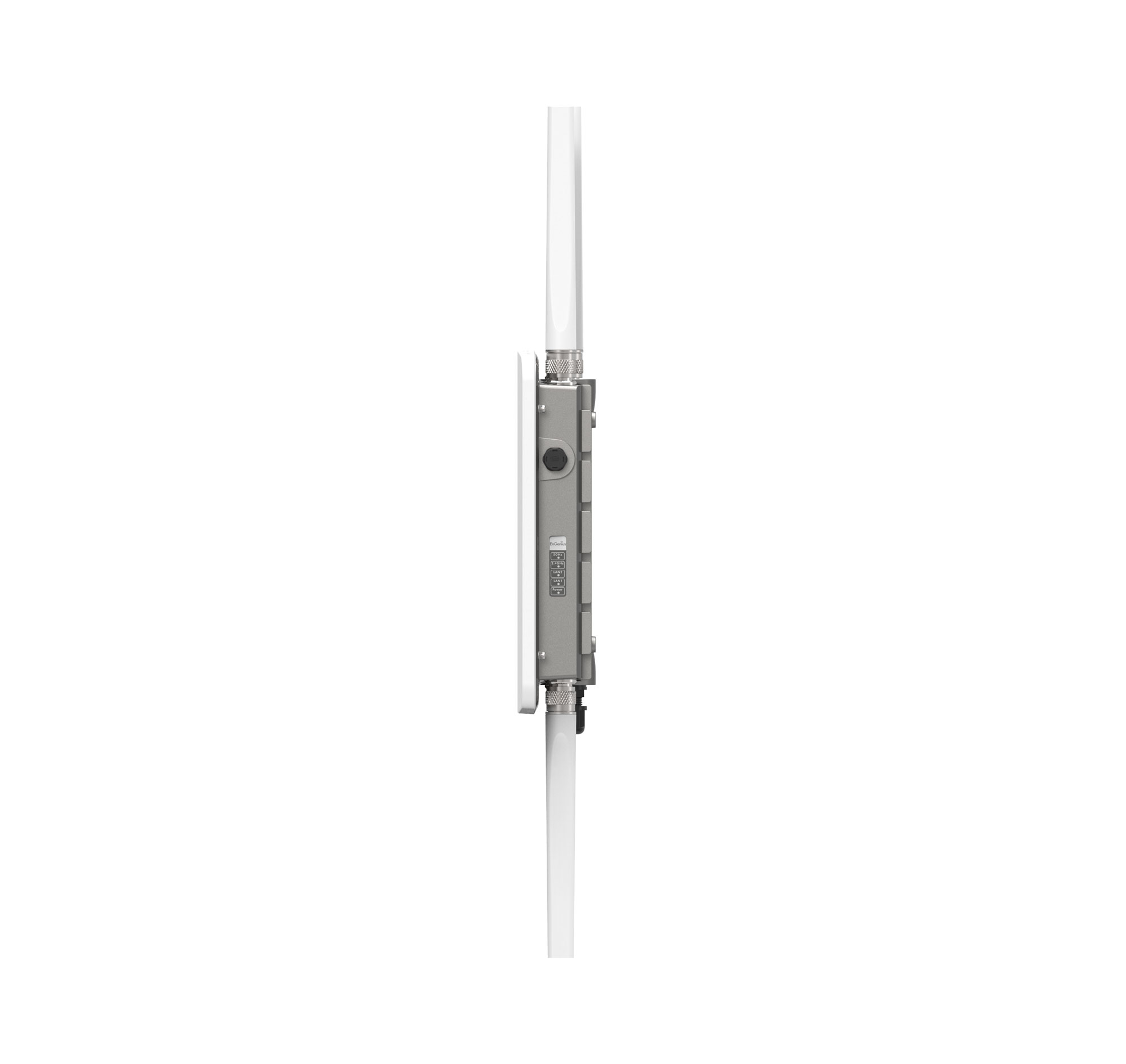

EnGenius - ECW270 - Wi-Fi 6 (802.11ax, 4x4:4) Cloud Managed Outdoor AP
Part number:
ECW270
Price:
EnGenius Cloud Managed ECW270 outdoor Wi-Fi 6, 4x4, IP68, MU-MIMO dual-band access point reaches speeds up-to 2,400 Mbps in 5GHz and 1,200 Mbps in 2.4GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.
Features:
- Highest-rated, IP68-rated waterproof & dustproof housing withstands extreme WiFi outdoor environments
- Detachable four (4) 7 dBi 5 GHz & four (4) 5 dBi 2.4 GHz, Omni 360° N-type antennas
- Supports up to 2,400 Mbps in 5-GHz band & 1,200 Mbps in 2.4-GHz band
- Dual-band 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
- 2.5 GigE PoE++ compatible port for easy placement in outdoor spaces
- 1 GigE port with PSE (802.3af/at) to power-up IP-cameras or other compliant devices
- High-powered radios to increase meshing distances on either 2.4 GHz or 5 GHz
- Built-in surge and ESD (electro-static discharge) protection
- Wide outdoor operation ranges from -4°F ~ +149°F (-20°C ~ +65°C)
- Cloud-manage unlimited number of APs from anywhere with the EnGenius Cloud app
- Real-time AP diagnostics, deep-dive analytics, and remote configurations
- No access point licensing or subscription fees needed
| Technical Specifications |
| Standards |
| IEEE 802.11b/g/n/ax on 2.4GHz |
| IEEE802.11a/n/ac/ax on 5GHz |
| Processor |
| Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz |
| Antenna |
| Four (4) External 7 dBi 5 GHz Detachable N-Type Antennas |
| Four (4) External 5 dBi 2.4 GHz Detachable N-Type Antennas |
| Physical Interface |
| 1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port |
| 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (PoE+ PSE out) |
| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x LAN 2 |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| Power Source |
| Power-over-Ethernet: 802.3at/bt |
| Proprietary 48V – 54V |
| IEEE 802.11e Compliant Source |
| Active Ethernet (PoE) |
| Maximum Power Consumption |
| 46W |
| Surge Protection |
| 1KV |
| ESD Protection |
| Contact: 4KV |
| Air: 8 KV |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4GHz & 5 GHz |
| Operation Modes |
| AP, Mesh, AP Mesh |
| Frequency Radio |
| 2.4GHz: 2400 MHz ~ 2482 MHz |
| 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz |
| Transmit Power |
| 2.4GHz: 24 dBm |
| 5GHz: 24 dBm |
| Maximum power is limited by regulatory domain |
| Tx Beamforming (TxBF) |
| Increasing signal reliability and transmitting distance. |
| Radio Chains/Spatial Stream |
| 4x4:4 |
| SU-MIMO |
| Four (4) spatial streams SU-MIMO for 2.4GHz and four (4) spatial streams SU-MIMO for 5GHz up to 3,600 Mbps wireless data rate to a single 11ax wireless client device under both 2.4G Hz and 5GHz radio. |
| MU-MIMO |
| Four (4) spatial streams multi-user (MU)-MIMO for up to 2,400 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously |
| Four (4) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11ax: |
| 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 2) |
| 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 2) |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 600 Mbps (MCS0 to MCS15) |
| 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| Channelization |
| 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-band VLAN Pass Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Complaint With IEEE 802.11e Standard WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3-PSK (SAE) |
| WPA3 Enterprise |
| WPA2 Enterprise (AES) |
| WPA2 AES-PSK |
| OWE |
| Hide SSID in Beacons |
| MAC Address Filtering, up to 32 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Environmental & Physical |
| Temperature Range |
| Operating: -4º~149ºF/-20ºC~65ºC |
| Storage: -40Fº~176ºF/-30ºC~80ºC |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Waterproof & Dustproof |
| IP68-Rated Enclosure |
| Device Dimensions & Weights |
| ECW270 Device |
| Weight: 4.12lbs. (1.87kg) |
| Width: 8.58” (218 mm) |
| Length: 11.22” (285 mm) |
| Height” 2.18” (55.5 mm) |
| Packaging |
| Weight: 3.33 lbs. (1.51kg) |
| Width: 9.21" (234 mm) |
| Length: 11.18" (284 mm) |
| Height: 5.67" (144 mm) |
| Package Contents |
| 1 – ECW270 Cloud Managed Outdoor Access Point |
| 1 - Pole-Mounting Brackets |
| 1 - Wall-Mount Screw Set |
| 4 - 2.4 GHz 5dBi N-Type Antennas |
| 4 – 5 GHz 7dBi N-Type Antennas |
| 1 - Quick Installation Guide |
| Certifications |
| FCC |
| CE |
| IC |
| Warranty |
| 2 Year |
