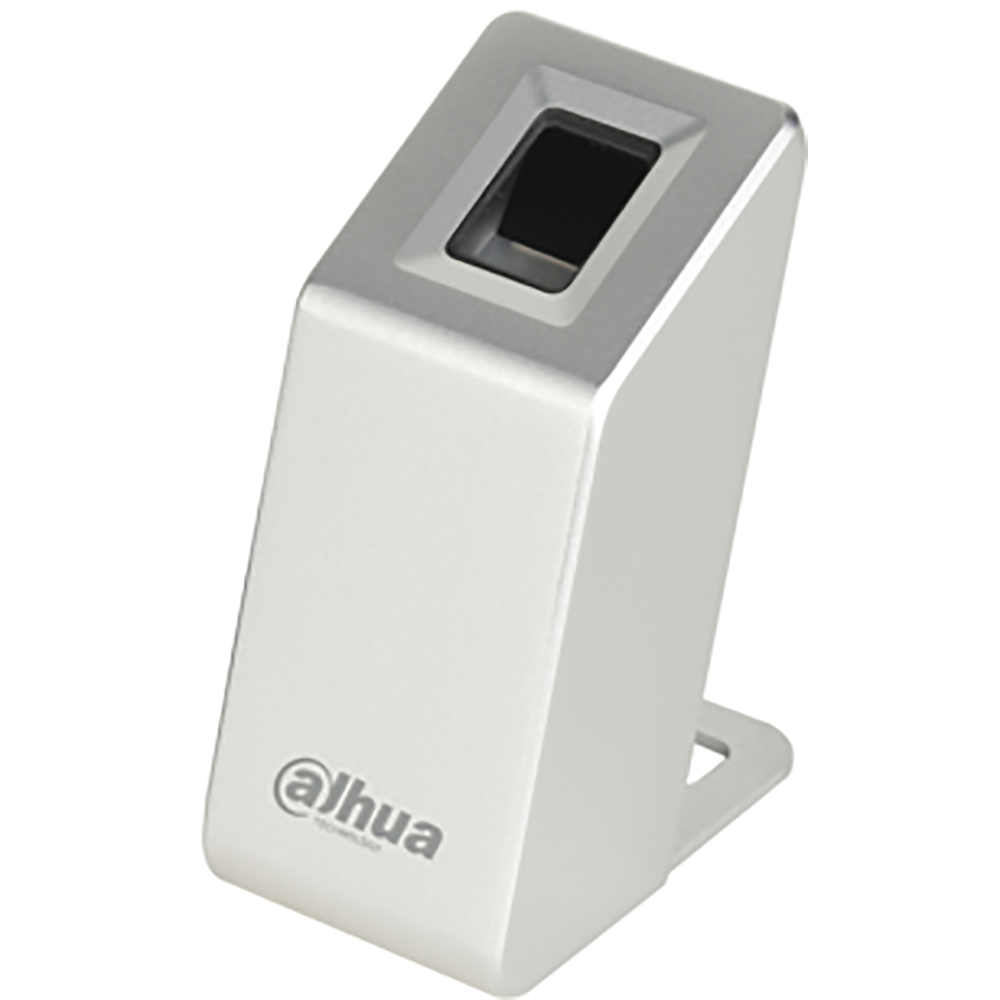

Dahua - DHI-ASM202 - Fingerprint Enrollment Reader
Part number:
DHI-ASM202
Price:
The DHI-ASM202 Fingerprint Enrollment Station enables customers to on-board personnel as part of a complete access control solution from Dahua Technology. It provides both a plug-and-play setup and fast optical fingerprint enrollment when combined with SmartPSS management software.
Features :
- Optical Fingerprint Module
- Plug and Play Operation, No Driver Installation
- USB Power Supply and Communication
- Compatible with SmartPSS
- (Requires version 2.002.0000007.0, Build Date 2019-01-22)
| System | |
| Resolution | 500 DPI |
| Sensing Area (L x W) | 18.0 mm x 15.0 mm (0.71 in. x 0.59 in.) |
| Entry Time | ≤ 350 ms |
| Response Time | ≤ 1.5 s |
| FAR | ≤ 0.001% |
| FRR | ≤ 0.014% |
| Management Software | SmartPSS (Requires version 2.002.0000007.0, Build Date 2019-01-22) |
| Electrical/Environmental | |
| Power Supply | 3.8 VDC to 7 VDC |
| Communication | USB |
| Operating Temperature | 0 °C to +55 °C (+32 °F to +131 °F) |
| Operating Humidity | 20% to 90% (no frost) |
| Construction | |
| Dimensions | 87.55 mm x 66.64 mm x 40.0 mm (3.45 in. x 2.62 in. x 1.57 in.) |
| Color | Silver |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Manual
0.5mb
