Platinum Tools - 2039 - Copper Foil Strips w/Conductive Adhesive. 100/Bag.
Part number:
2039
Price:

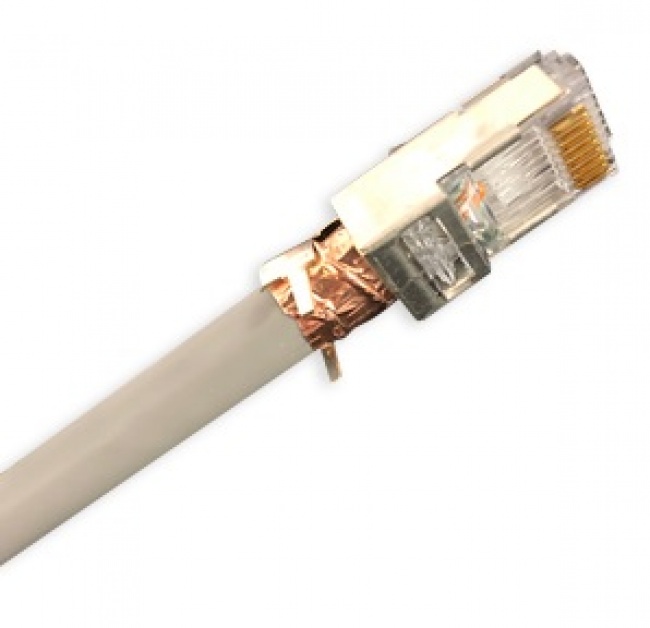

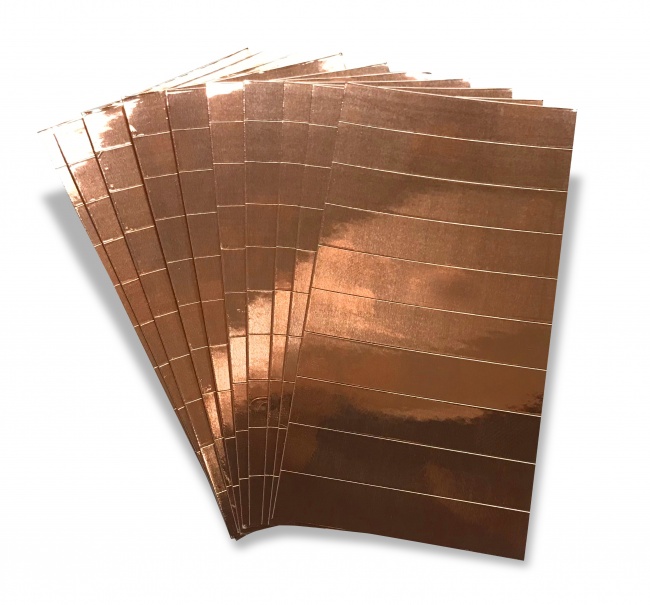

Platinum Tools Copper Foil Strips consist of a copper foil backing and conductive adhesive. The Copper Foil Strips are supplied on removable paper sheet for easy handling. Copper foil strips are typically used as an EMI / RFI shielding for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping, and surface contact to non-solderable materials. These copper foil strips work perfectly with all the Platinum Tools Shielded RJ45 Connector and Shielded Keystone Jacks.
Features:
- Conductive Adhesive
- EMI/RFI Shielding Strips
- Improves Bandwidth Performance

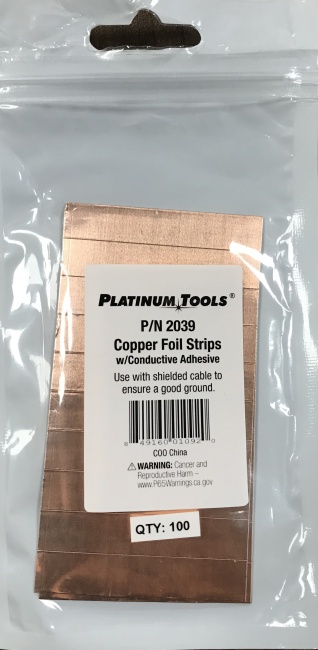

- 10 strips per sheet (10 sheets per pack) 100 pcs
| Copper Foil Strips Specifications | |
| Base Material | Copper Foil |
| Base Material Characteristic | XYZ Axis Conductive |
| Composition of Adhesive | 99.95% CU |
| Thickness of Material | 0.025mm±10% |
| Adhesive | Conductive Acrylic Adhesive |
| Composition of Adhesive | Acrylic Acid + NI |
| Thickness of Adhesive | 0.03mm±10% |
| Liner | Single-Sided Release Paper with White Color |
| Weight of Liner | 140g±10% |
| Thickness of Liner | 0.15mm±10% |
| Total Thickness | 0.05mm±10% |
| Heat Resistance (ASTM-1000) | -10°C~120°C |
| Peel off Strength (With Metal Plate) (ASTM-1000) | ≥1.0KG/25mm |
| Shielding Effectiveness (SJ-20524-1995) | 60dB(10Mhz~3GHz) |
| Copper Surface Resistivity (ASTM-100) | 0.015Ω |
| Adhesive Surface Resistivity (ASTM-1000) | ≤0.08Ω |
