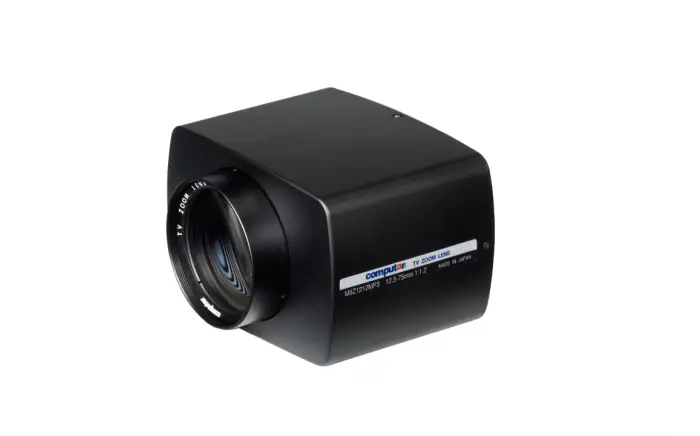

Computar - M6Z1212MP3 - 12.5-75mm fj.2 6X, 3 Motors, W/preset for Zoom-focus-iris
Part number:
M6Z1212MP3
Price:
12.5-75mm fj.2 6X, 3 motors, w/preset for zoom-focus-iris.
Features:
- 6X Motorized Zoom Lens
- 12.5-75mm
- F1.2
- Motorized Zoom, Focus and Iris
- Preset Zoom, Focus and Iris
| Model No. | M6Z1212MP3 | Effective Lens Aperture | Front | φ46.5mm | |||
| Focal Length | 12.5mm ‐ 75mm | Rear | φ15.6mm | ||||
| Max.Aperture Ratio | 1:1.2 | Back Focal Length | 15.4mm | ||||
| Max.Image Format | 8.8mm x 6.6mm(φ11mm） | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.2 ‐ F16C | Mount | C-Mount | |||
| Focus | 1m ‐ lnf. | Filter Size | M55 P=0.75mm | ||||
| Zoom | 12.5mm ‐ 75mm | Dimensions | 108mm x 71mm x 114.5mm | ||||
| Control | Iris | Motorized, Preset | Weight | 750g | |||
| Focus | Motorized, Preset | ||||||
| Zoom | Motorized, Preset | ||||||
| Angle of View | D | 2/3type | 46.9°‐ 8.3° | 1/2type | 35.0°‐ 6.2° | 1/3type | 26.5°‐ 4.7° |
| H | 38.3°‐ 6.7° | 29.2°‐ 5.1° | 21.3°‐ 3.8° | ||||
| V | 29.2°‐ 5.1° | 21.3°‐ 3.8° | 16.0°‐ 2.8° | ||||
| Iris | Focus | Zoom | |||||
| Supply Voltage | DC8V | DC8V | DC8V | ||||
| Current | 30mA or less | 35mA or less | 30mA or less | ||||
| Response Time | Approx. 3 sec. | Approx. 5 sec. | Approx. 4 sec. | ||||
| Preset Potentiometer | 5KΩVR | 5KΩVR | 5KΩVR | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
