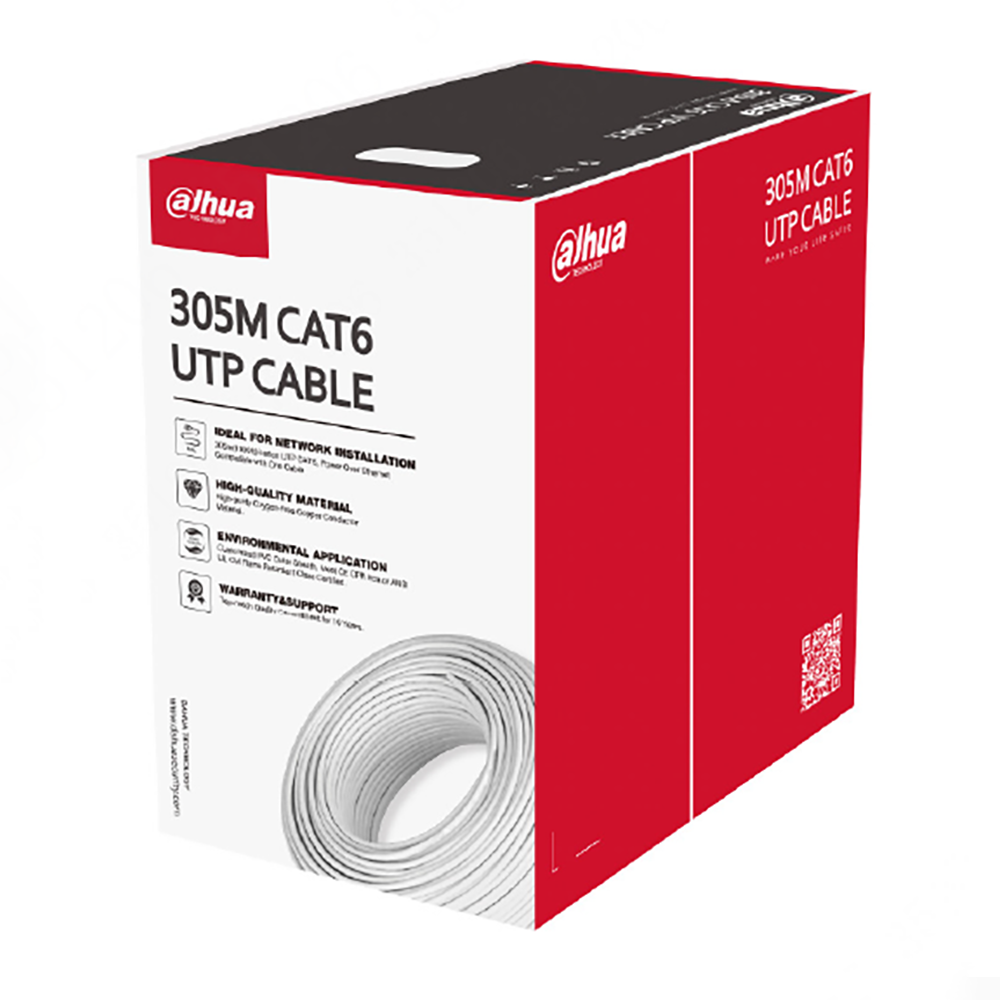

Dahua - DH-PFM920I-6UN-ER - CAT6 UTP CMR Cable
Part number:
DH-PFM920I-6UN-ER
Price:
CAT6 UTP CMR Cable.
Features:
- 305 m (1000 ft) CAT6 UTP Cable
- Conductor Thickness
- 0.57mm Diameter (23 AWG) for DH-PFM920I-6U-ER
- 0.53mm Diameter for DH-PFM920I-6UN-ER
- 99.97% Oxygen-free Copper Conductor
- Customized PVC Outer Sheath
- CMR Flame-Retardant: ETL Certified
| Technical Specification | |
| Conductor | |
| Material | Oxygen-free Copper (99.97% Purity) |
| Diameter | 0.53 mm ± 0.01 mm |
| Material | HDPE |
| Minimum Average Thickness | 0.21 mm |
| Diameter | 0.95 mm ± 0.1mm |
| Colors |
|
| Material | PE |
| Specification | Ivory, 4.5 mm x 0.4 mm |
| Rip Cord | |
| Material | Polyester |
| Specification | 500D |
| Sheath | |
| Material | PVC |
| Minimum Average Thickness | 0.5 mm |
| Diameter | 6.0 mm ± 0.3 mm |
| Color | White |
| Electrical | |
| Maximum DC Resistance (Single Conductor) | 8.7Ω/100 m |
| Minimum Insulation Resistance | 5000MΩ km |
| Maximum DC Resistance Unbalance | 2% (Pair Intra), 4% (Pairs Inter) |
| Dielectric Strength | No breakdown with 1KV DC for one (1) minute |
| Transmission | |
| Characteristic Impedance | 100 ± 15Ω |
| Near End Cross Talk | ≥ 36.1 dB/100 m at 350 MHz |
| Maximum Attenuation | 39.8 dB/100 m at 350 MHz |
| Return Loss | ≥ 16.3 dB/100 m at 350 MHz |
| Mechanical | ||
| Tensile Strength | Sheath | ≥ 13.5 MPa, |
| Insulation | ≥ 16.0 MPa | |
| Elongation at Break | Sheath | ≥ 150% |
| Insulation | ≥ 300% | |
| Installation Bending Radius | > Eight (8) times the outer cable diameter | |
| Conductor Elongation at Break | ≥ 10% | |
| Shrinkage of Insulation | ≤ 5% |
| Color Migration Resistance of Insulation | None |
Sheath Tensile Strength and Elongation at Break after Aging | ≥ 12.50 MPa, ≥ 100% |
| Low Temperature Bendng Test | No cracking after test |
| Heat Shock Test | No cracking after test |
| Operating Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Installation Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature and Humidity | –10 °C to 40 °C (14 °F to 104 °F), < 60% (RH) |
| Packaging | |
| Cable Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) |
| Inner Carton Dimensions (L x W x H) | 416.0 mm × 412.0 mm × 2000. mm (16.38 in. × 16.22 in. × 8.66 in.) |
| Packaging Method | 305.0 m (1000.66 ft) per carton Two (2) cartons in a protective box |
| Net Weight | ≥ 10.50 kg (23.15 lb) |
| Gross Weight | ≥ 11.50 kg (25.35 lb) |
| Compliance | |
| Executive Standards | ANSI/TIA 568-C.2-2009 |
| Certifications | ETL CMR |
