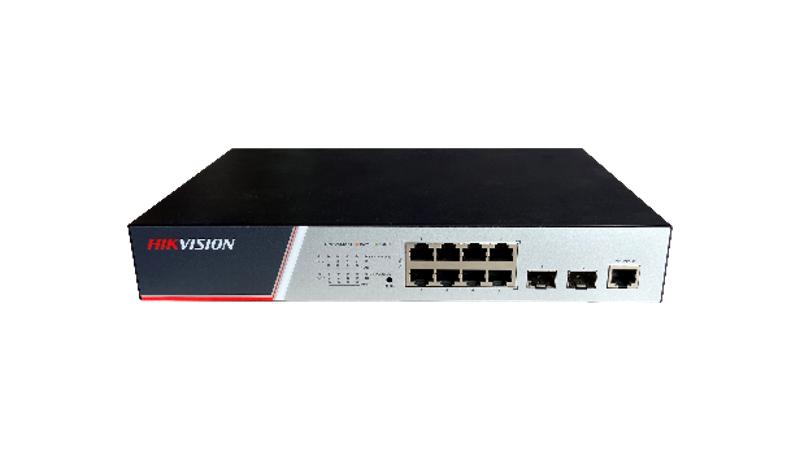

Hikvision - DS-3E2510P(B) - 8 Gigabit Full Managed PoE Switch
Part number:
DS-3E2510P(B)
Price:
8 Port Gigabit Full Managed POE Switch
Features:
- 8 Gigabit Poe electrical ports and 2 Gigabit / 100M SFP optical ports.
- IGMP snooping and GRMP for filtering multicast traffic.
- Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
- Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
- Support EAPs and ERPs Ethernet ring network protection protocol.
- QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
- Support IEEE 802.3af/at compliant PoE.
- Each PoE port provides up to 30W output power.
- PoE management: PoE device detection, PoE power management.
- Easy network management by web browser, Console, Telnet, SSH.
- SNMPv1/v2c/v3 for different levels of network management.
| Specification | |
|---|---|
| General | |
| Net Weight | 1.52 kg (3.35 lb) |
| Gross Weight | 1.74 kg (3.84 lb) |
| Dimensions (W × H × D) | 280.00 mm × 45.00 mm × 179.00 mm (11.02'' × 1.77'' × 7.05'') |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Power Supply | 100–240 VAC, 50 Hz ± 10% |
| Power Consumption | < 15 W |
| Network Parameters | |
| Ports | 8 × 1 Gbps PoE port, 2 × 1 Gbps fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | Whole-Device Performance: 20 Gbps Port Performance: 20 Gbps |
| Packet Forwarding Rate | Whole-Device Performance: 14.88 Mpps Port Performance: 14.88 Mpps |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | 1/2 (+), 3/6 (–) |
| PoE Power Budget | 125 W |
| Software Function | |
| VLAN | 4K VLAN, GVRP, QinQ, Private VLAN |
| QoS | Flow classification based on L2–L4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR, and SP+WRR Tail-Drop and WRED Flow monitoring and shaping |
| Multicast | IGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation |
| Management Method | Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON |
| Security | L2/L3/L4 ACL flow identification and filtration DDoS, SYN Flood, UDP Flood protection Storm-control Port isolation Port security, IP+MAC+port binding |
| Approval | |
| EMC | FCC (ANSI C63.4, 47 CFR PART 15B) CE-EMC / RCM (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020) IC (ICES-003: Issue 23) |
| Safety | UL (UL 62368-1), CB (IEC 62368-1:2014), CE-LVD (EN 62368-1:2014+A11:2033) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (Regulation (EC) No 1907/2022) |
